Harmony XVU Illuminated LED unit for modular tower lights red, Ø60, steady, IP65, 24V AC/DC

Home ProductsIndustrialHarmonyIlluminated LED unit for modular tower lights

Harmony XVU Illuminated LED unit for modular tower lights red, Ø60, steady, IP65, 24V AC/DC

Item Number: XVUC24

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Device application

  • packaging machine
  • automotive
  • machine tools

Physical

Length

50 mm

Net weight

0.064 kg

Product certifications

  • CE
  • CSA
  • UL

Ambient air temperature for storage

-40...70 °C

Ip degree of protection

IP65

Ambient air temperature for operation

-25...50 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Eu rohs directive

Compliant By Exemption

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • PC (polycarbonate) V-2 conforming to UL 94
  • PC (polycarbonate) V-0 conforming to UL 94

Others

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

Beacon or indicator bank unit type

LED unit

Mounting diameter

60 mm

Component name

XVU

Light source

LED, red

Signalling type

steady

Assembly style

  • up to 4 units with buzzer
  • customer assembly, up to 5 units

[us] rated supply voltage

24 V AC/DC

Maximum power dissipation in w

2 W

Current consumption

<= 40 mA

Signalling type

steady

Vibration resistance

2 gn

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

13.3 cm

Package 1 length

9.1 cm

Package 1 weight

145 g

Unit type of package 2

S03

Number of units in package 2

24

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

4.228 kg

Unit type of package 3

PAL

Number of units in package 3

192

Package 3 height

60 cm

Package 3 width

80 cm

Package 3 length

70 cm

Package 3 weight

35.84 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

10 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.4206599153154208

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00836886573396554

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0661929013249039

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

9.744520547945202

Carbon footprint of the use phase [b2, b3, b4, b6]

10 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.05577412242190091

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

10.295516352741393

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

China rohs label

5

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Handout

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
XVUC24_CAD
ZIP

XVUC24_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 140.2 KB
Catalog of Harmony XVU modular tower light, dia. 60
ZIP

Catalog of Harmony XVU modular tower light, dia. 60

VERSION

8.0

DATE

06 Aug 2024

REVISION

8.0

DOWNLOAD (ZIP) 5.5 MB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 300 KB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet
ZIP

XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 2.8 MB
XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet
ZIP

XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet

VERSION

2.0

DATE

21 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 4.1 MB
XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet
ZIP

XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 12 MB
XVU... Modular tower lights (Ø 60), Instrution Sheet
ZIP

XVU... Modular tower lights (Ø 60), Instrution Sheet

VERSION

2.0

DATE

14 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 10.1 MB
Automated solution for effective people flow management!
ZIP

Automated solution for effective people flow management!

VERSION

1.0

DATE

07 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 175.1 KB
Technical Illustration - Wiring
ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 238.2 KB

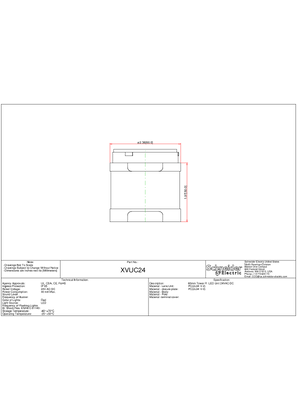

XVUC24_2D_Drwng_PDF
