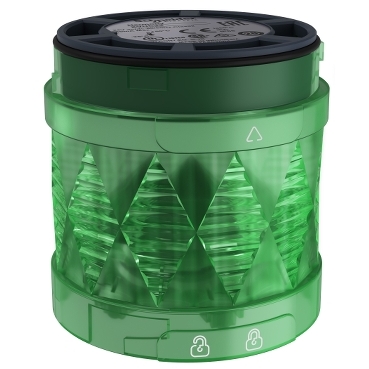

Harmony XVU Illuminated LED unit for modular tower lights green, Ø60, blinking, IP65, 24V AC/DC

Item Number: XVUC43

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480886942	-

Specifications

Design

Range of product	Harmony XVU
Product or component type	modular tower light
Device application	machine tools packaging machine automotive

Physical

Length	50 mm
Net weight	0.064 kg

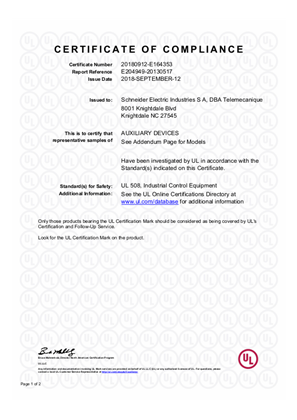

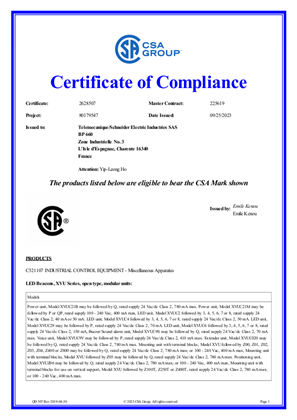

Product certifications	UL CSA CE
Ambient air temperature for storage	-40...70 °C
Ip degree of protection	IP65
Ambient air temperature for operation	-25...50 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2308032EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	PC (polycarbonate) V-2 conforming to UL 94 PC (polycarbonate) V-0 conforming to UL 94

Others

Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	24
Package 1 bare product quantity	1
Weee label	No
Beacon or indicator bank unit type	LED unit
Mounting diameter	60 mm
Component name	XVU
Light source	LED, green
Signalling type	blinking
Assembly style	customer assembly, up to 5 units up to 4 units with buzzer
[us] rated supply voltage	24 V AC/DC
Maximum power dissipation in w	1.2 W
Signalling type	blinking
Vibration resistance	2 gn
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.000 cm
Package 1 width	9.100 cm
Package 1 length	13.300 cm
Package 1 weight	142.900 g
Unit type of package 2	S03
Number of units in package 2	24
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	4.341 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.9201935647524829
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01830689379304962
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.14479697164822727
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	12.180650684931505
Carbon footprint of the use phase [b2, b3, b4, b6]	12 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.12200589279790824
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	13.385954007923173
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	c06fce4f-aea2-46a5-aadb-0b38d1efbe3f
End of life manual availability	ENVEOLI2308032EN
Take-back	No
Warranty (in months)	18
