Harmony XVU Illuminated LED unit for modular tower lights blue, Ø60, blinking, IP65, 24V AC/DC

Home ProductsIndustrialHarmonyIlluminated LED unit for modular tower lights

Harmony XVU Illuminated LED unit for modular tower lights blue, Ø60, blinking, IP65, 24V AC/DC

Item Number: XVUC46

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Device application

  • machine tools
  • automotive
  • packaging machine

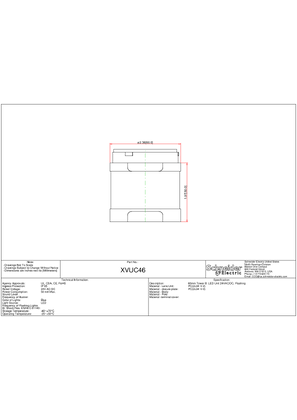

Physical

Length

50 mm

Net weight

0.064 kg

Product certifications

  • CSA
  • UL
  • CE

Ambient air temperature for storage

-40...70 °C

Ip degree of protection

IP65

Ambient air temperature for operation

-25...50 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Eu rohs directive

Compliant By Exemption

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • PC (polycarbonate) V-2 conforming to UL 94
  • PC (polycarbonate) V-0 conforming to UL 94

Others

Package 2 bare product quantity

24

Package 1 bare product quantity

1

Legacy weee scope

Out

Weee label

No

Warranty duration(in months) bmecat

18

Average percentage of recycled plastic content

0 %

At least in Europe

Beacon or indicator bank unit type

LED unit

Mounting diameter

60 mm

Component name

XVU

Light source

LED, blue

Signalling type

blinking

Assembly style

  • customer assembly, up to 5 units
  • up to 4 units with buzzer

[us] rated supply voltage

24 V AC/DC

Maximum power dissipation in w

1.2 W

Signalling type

blinking

Vibration resistance

2 gn

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.000 cm

Package 1 width

9.100 cm

Package 1 length

13.300 cm

Package 1 weight

137.000 g

Unit type of package 2

S03

Number of units in package 2

24

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.019 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

13 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.9399119982828934

Carbon footprint of the manufacturing phase [a1 to a3]

0.9 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.01869918437432926

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.14789976389783216

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

12.180650684931505

Carbon footprint of the use phase [b2, b3, b4, b6]

12 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.12462030478643488

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

13.411781936272995

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

China rohs label

5

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
