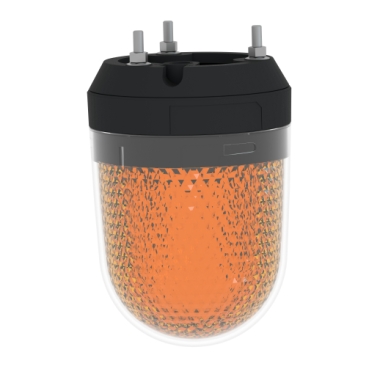

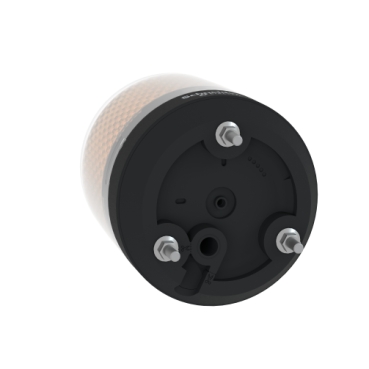

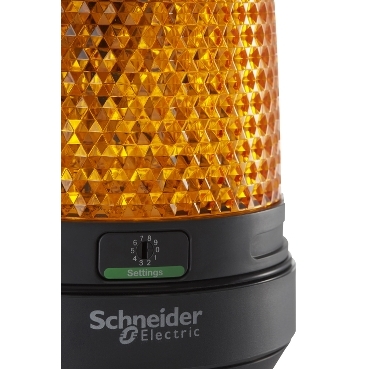

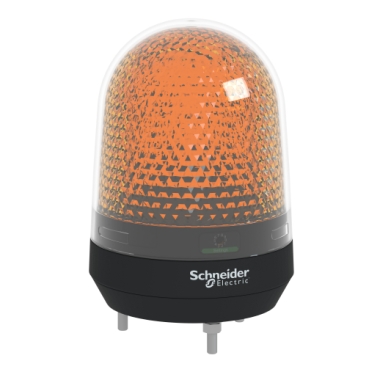

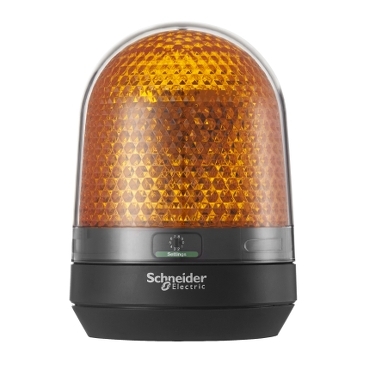

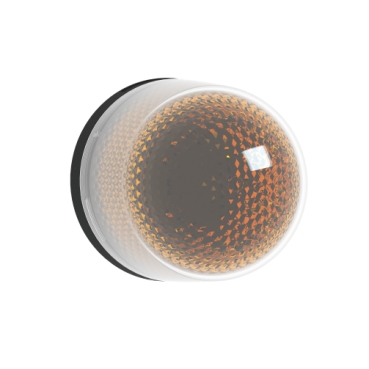

Harmony XVR Illuminated beacon without buzzer orange, Ø100, integral LED, 12...24V DC

Item Number: XVR3B05

1 PCE 0

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480611780	-

Specifications

Design

Range of product	Harmony XVR
Product or component type	beacon
Device application	automated guided vehicle (AGV) bulldozer forklift

Physical

[ue] rated operational voltage	10...30 V DC
Inrush current	3 A
Power consumption in w	2.8 W
Marking	CE
Installation direction	upright indoor sideways indoor inverted indoor upright outdoor
Electrical insulation class	class II
Length	100 mm
Width	100 mm
Height	139 mm
Net weight	0.484 kg
Ambient air temperature for operation	-20...50 °C
Ambient air temperature for storage	-35...70 °C
Relative humidity	35...85 % without condensation
Ip degree of protection	IP65 (upright) IP23 (sideways) IP23 (inverted)
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506030EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate): lenses PBT (polybutylene terephthalate) + PC (polycarbonate): body EPDM (ethylene propylene diene monomer): base

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	8
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	XVR3
Beacon or indicator bank unit type	LED unit
Mounting diameter	100 mm
Light source	LED, orange
Signalling type	flashing rotating blinking
Assembly style	ready assembled
[us] rated supply voltage	12...24 V DC
Current consumption	3000 mA
Vibration resistance	4.6 gn (sideways) 4.6 gn (inverted) 7.1 gn (upright)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	13.800 cm
Package 1 width	13.800 cm
Package 1 length	18.500 cm
Package 1 weight	628.000 g
Unit type of package 2	S04
Number of units in package 2	8
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	5.999 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	12.4054405677
Carbon footprint of the manufacturing phase [a1 to a3]	12 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0825745713
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0084378001
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.4699086758
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.217452395
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	13.1838140099
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	5
End of life manual availability	ENVEOLI2506030EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
