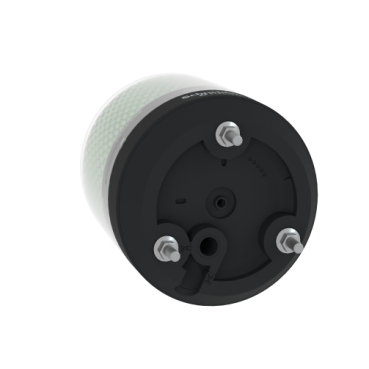

Harmony XVR Illuminated beacon without buzzer orange, Ø100, integral LED, 12...24V DC

Item Number: XVR3B03

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVR

Product or component type

beacon

Device application

  • forklift
  • bulldozer
  • automated guided vehicle (AGV)

Physical

[ue] rated operational voltage

10...30 V DC

Inrush current

3 A

Power consumption in w

2.8 W

Marking

CE

Installation direction

  • upright indoor
  • sideways indoor
  • inverted indoor
  • upright outdoor

Electrical insulation class

class II

Length

100 mm

Width

100 mm

Height

139 mm

Net weight

0.484 kg

Ambient air temperature for operation

-20...50 °C

Ambient air temperature for storage

-35...70 °C

Relative humidity

35...85 % without condensation

Ip degree of protection

  • IP65 (upright)
  • IP23 (sideways)
  • IP23 (inverted)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Material

Material

  • PC (polycarbonate): lenses
  • PBT (polybutylene terephthalate) + PC (polycarbonate): body
  • EPDM (ethylene propylene diene monomer): base

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

8

Device short name

XVR3

Beacon or indicator bank unit type

LED unit

Mounting diameter

100 mm

Light source

LED, green

Signalling type

  • flashing
  • rotating
  • blinking

Assembly style

ready assembled

[us] rated supply voltage

12...24 V DC

Current consumption

3000 mA

Vibration resistance

  • 4.6 gn (sideways)
  • 4.6 gn (inverted)
  • 7.1 gn (upright)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

18.300 cm

Package 1 width

13.700 cm

Package 1 length

13.500 cm

Package 1 weight

637.000 g

Unit type of package 2

S04

Number of units in package 2

8

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

5.992 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
