Harmony XVR Illuminated beacon with buzzer orange, 100mm, 70...90dB, integral LED, 100...230V AC

Item Number: XVR3M05S

1 PCE 0

This illuminated beacon is designed as lighting accessory for tower light. Its integral LED offers a flashing / blinking / rotating light pattern and an audible unit allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV). It is vibration resistant thanks to its IP23.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480611902	-

Specifications

Design

Range of product

Harmony XVR

Product or component type

beacon

Device application

forklift
bulldozer
automated guided vehicle (AGV)

Physical

[ue] rated operational voltage

90...253 V AC

Inrush current

0.5 A

Power consumption in w

3.2 W

Marking

Installation direction

upright indoor
sideways indoor
inverted indoor
upright outdoor

Electrical insulation class

class II

Length

100 mm

Width

100 mm

Height

139 mm

Net weight

0.538 kg

Product certifications

CCC

Ambient air temperature for operation

-10...50 °C

Ambient air temperature for storage

-20...70 °C

Relative humidity

35...85 % without condensation

Ip degree of protection

IP23 (sideways)
IP23 (inverted)
IP23 (upright)

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2506030EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

PC (polycarbonate): lenses
PBT (polybutylene terephthalate) + PC (polycarbonate): body
EPDM (ethylene propylene diene monomer): base

Others

Package 1 bare product quantity

Package 2 bare product quantity

Legacy weee scope

Out

Weee label

Average percentage of recycled plastic content

0 %

At least in Europe

Device short name

XVR3

Beacon or indicator bank unit type

LED unit

Sound signalling

buzzer: 70-90 dB at 1 m

Mounting diameter

100 mm

Light source

LED, orange

Signalling type

rotating
blinking
flashing

Assembly style

ready assembled

[us] rated supply voltage

100...230 V AC

Current consumption

500 mA

Vibration resistance

4.6 gn (sideways)
4.6 gn (inverted)
4.6 gn (upright)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

18.200 cm

Package 1 width

13.500 cm

Package 1 length

13.500 cm

Package 1 weight

675.000 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

6.134 kg

Total lifecycle carbon footprint

56 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

12.7931105855

Carbon footprint of the manufacturing phase [a1 to a3]

13 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0851550266

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0087014814

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

42.4918709677

Carbon footprint of the use phase [b2, b3, b4, b6]

42 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.2242477824

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Total lifecycle carbon footprint

55.6030858436

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI2506030EN

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
Product Brochures
CAD Files and Packs
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Technical illustration
eTechPub
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Harmony XVR Illuminated beacon with buzzer orange, 100mm, 70...90dB, integral LED, 100...230V AC

Item Number: XVR3M05S

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Material

Others

Documents & downloads

All

Product Brochures

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

eTechPub

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Document created to promote the Harmony XVR3 beacons.

Beacon, Buzzer - 3D CAD

Harmony XVR rotating beacons, dia 84 - 130 catalog

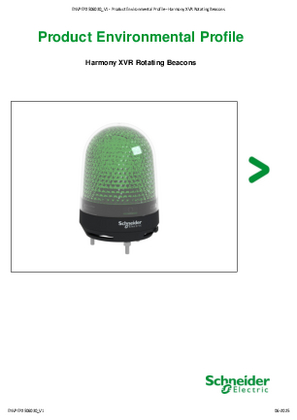

XVR Rotating Beacons

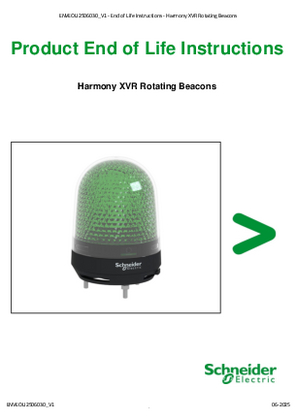

XVR Rotating Beacons
