Harmony Solid State Relays Heat sink panel mount, thermal resistance 0.5 degree C W

Home ProductsIndustrialHarmonyHeat sink

Harmony Solid State Relays Heat sink panel mount, thermal resistance 0.5 degree C W

Item Number: SSRHP05

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width152.4 mm

Height icon

Height152.4 mm

Depth icon

Depth88.9 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Solid State Relays

Product or component type

heat sink

Product compatibility

1 solid state relay SSR on panel

Surface finish

black anodized

Physical

Mounting support

panel

Sale per indivisible quantity

1

Width

152.4 mm

Height

152.4 mm

Depth

88.9 mm

Net weight

1.440 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1308009

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

aluminium

Others

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

6

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Weee label

No

Thermal resistance

0.5 °C/W

Surface and useful surface

4406 cm²

Number of mounting holes

6 with UNC 8-32 thread

Tightening torque

1.7...2.2 N.m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.000 cm

Package 1 width

16.400 cm

Package 1 length

17.500 cm

Package 1 weight

1.559 kg

Unit type of package 2

S03

Number of units in package 2

6

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

10.070 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • Environmental Disclosure

  • Technical illustration

  • eTechPub

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Catalog Harmony Solid State Relays - English
ZIP

Catalog Harmony Solid State Relays - English

VERSION

8.0

DATE

28 Mar 2025

REVISION

8.0

DOWNLOAD (ZIP) 12.7 MB

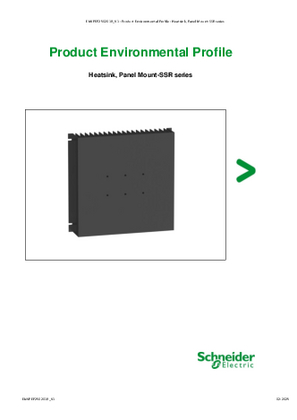

Heatsink, Panel Mount-SSR series
