green flush/red projecting illuminated double-headed pushbutton Ø22 unmarked

Home ProductsIndustrialHarmonyHead for illuminated double headed push-button

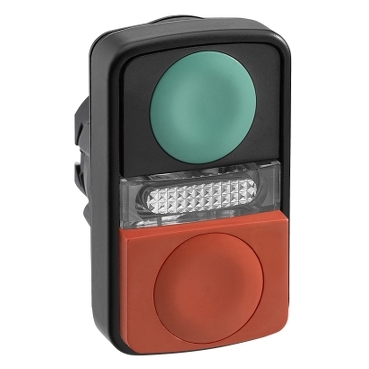

Harmony XB5 Head for illuminated double headed push-button 1 green flush/ 1 red projecting, 22mm, unmarked

Item Number: ZB5AW7L3740

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389119043373	-
5	PAC	53389119043378	-

Specifications

Design

Range of product	Harmony XB5
Product or component type	head for illuminated double-headed push-button
Product compatibility	integral LED
Warranty	18 months

Physical

Sale per indivisible quantity	1
Net weight	0.023 kg
Mechanical durability	1000000 cycles
Marking	unmarked
Device presentation	basic sub-assemblies
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-25...70 °C
Ip degree of protection	IP66 IP69 IP69K
Ik degree of protection	IK05 conforming to IEC 50102
Standards	IEC 60947-5-4 UL 508 CSA C22.2 No 14 IEC 60947-5-1 JIS C8201-5-1 IEC 60947-1 JIS C8201-1
Product certifications	CSA DNV BV LROS (Lloyds register of shipping) UL listed
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2404014_V1
Eu rohs directive	Compliant

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	200
Average percentage of recycled plastic content	16 %
Legacy weee scope	Out
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	ZB5
Bezel material	dark grey plastic
Head type	standard
Mounting diameter	22 mm
Shape of signaling unit head	rectangular
Type of operator	spring return
Operator profile	1 flush - 1 projecting push-buttons - 1 central pilot light
Operators description	green unmarked - red unmarked
Cad overall width	30 mm
Cad overall height	50 mm
Cad overall depth	35 mm
Operator profile	green flush, unmarked red projecting, unmarked
Main group	illum double head
Group of product	flush/proj illum unmarked
Station name	XALD 1 cut-out
Cap/operator or lens colour	green/red
Compatibility code	ZB5
Customizable	no
Customizable	0
Electrical composition code	M1 for <6 contacts using single blocks in front mounting with integral LED M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED MF1 for <2 contacts using single blocks in front mounting with integral LED MR1 for <2 contacts using single blocks in rear mounting with integral LED
Electrical shock protection class	class II conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Nema degree of protection	UL type 4X/13
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.500 cm
Package 1 width	4.600 cm
Package 1 length	5.300 cm
Package 1 weight	24.000 g
Unit type of package 2	S03
Number of units in package 2	200
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.833 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.1603235294117647
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0066298217468805706
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0063752228163992865
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.05316648841354723
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2264950623885918
Average percentage of recycled plastic content	16 %
Average percentage of recycled metal content	29 %
Average percentage of recycled metal content	29 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
End of life manual availability	ENVEOLI2404014EN
Take-back	No
Warranty (in months)	18
