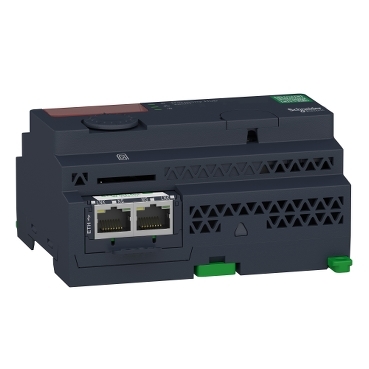

Harmony XB5R Harmony Hub wireless ethernet gateway Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC

Item Number: ZBRN1

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width122 mm

Height90 mm

Depth60 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480528484	-

Specifications

Design

Range of product	Harmony
Product or component type	Harmony Hub Wireless/Ethernet gateway

Physical

Function of module	Zigbee green power gateway
Communication port protocol	Modbus/TCP client application, with ZBRCETH module
Transmission frequency	2405...2480 MHz
Mounting support	35 mm symmetrical DIN rail conforming to IEC 60715 mounting plate
Width	122 mm
Height	90 mm
Depth	60 mm
Net weight	0.26 kg
Integrated connection type	Ethernet Modbus TCP/IP RJ45 Modbus TCP network, 10/100 Mbit/s, 2 twisted pairs
Product certifications	C-Tick CCC CSA GOST UL CE
Standards	ETSI EN 300 328 IEC 61131-2 CSA C22.2 No 14 ETSI EN 300 440-2 UL 508 IEC 60950-1 IEC 62311
Ambient air temperature for storage	-40...70 °C
Relative humidity	90 % at -25...55 °C, without condensation conforming to ETSI EN 300 440...1
Ip degree of protection	IP20 (casing) conforming to IEC 60529 IP20 (terminals)
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP101106EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	ZBRN1
Product specific application	Wireless Schneider Electric devices ecosystem
Antenna type	integrated
Maximum sensing distance	100 m in free field 250 m if a relay antenna is located between the transmitter and Harmony Hub 60 m if an external antenna is connected to Harmony Hub 25 m with Harmony Hub installed in a metal housing or in a closed metal enclosure
Response time	< 30 ms
Channels utilisation	<= 60 devices
[us] rated supply voltage	24...240 V AC/DC 50/60 Hz - 10...10 %
Immunity to microbreaks	10 ms
Maximum power consumption in w	4 W AC/DC
Control circuit frequency	50...60 Hz +/- 10 %
Short-circuit protection	16 A GB2 circuit breaker
Operating position	any position
Electrical connection	1 conductor cable 0.2-4 mm² - 24 AWG...12 AWG - solid - without cable end conforming to IEC 60947-1 2 conductors cable 0.2-1.5 mm² - 24 AWG...16 AWG - solid - without cable end conforming to IEC 60947-1 1 conductor cable 0.2-0.75 mm² - 24 AWG...14 AWG - flexible - with cable end conforming to IEC 60947-1 2 conductors cable 0.2-2.5 mm² - 24 AWG...18 AWG - flexible - with cable end conforming to IEC 60947-1
Tightening torque	0.35...0.4 N.m conforming to IEC 60947...1 3.09...3.54 lbf.in conforming to IEC 60947...1
Housing material	polycarbonate
Status led	1 LED green for power ON 1 LED yellow for communication network 5 LEDs red for function mode 1 LED green and yellow for reception signal
Rated short-duration power frequency withstand voltage	1.5 kV 50 Hz conforming to IEC 60947-5-1
[uimp] rated impulse withstand voltage	4 kV
Surge withstand	1 kV differential mode conforming to IEC 61000-4-5 2 kV common mode conforming to IEC 61000-4-5
Antenna gain	0 dBi
Data storage equipment	SD card
Topology	devices linked by daisy-chaining or tap junctions
Port ethernet	10BASE-T/100BASE-T
Maximum cable distance between devices	1000 m
Radio agreement	ANATEL, type III conforming to ETSI EN 301 489-3 FCC, category 2 conforming to ETSI EN 300 440-1 ICASA RSS, category 1 conforming to ETSI EN 300 440-1 SRRC
Directives	2004/108/EC - electromagnetic compatibility 1999/5/EC - R&TTE directive 2006/95/EC - low voltage directive
Operating altitude	0...2000 m
Storage altitude	0...3000 m
Vibration resistance	+/- 3.5 mm (f = 5-14 Hz) conforming to IEC 60068-2-6 1 gn (f = 5-150 Hz) on panel mounting conforming to IEC 60068-2-6 2 gn (f = 8-150 Hz) on DIN rail conforming to IEC 60068-2-6
Shock resistance	10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
Pollution degree	2 conforming to IEC 60664-1
Electromagnetic compatibility	1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5 immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11
Dielectric strength	3000 V between input and output AC 4250 V between input and output DC 1500 V between input and ground AC 2150 V between input and ground DC
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.300 cm
Package 1 width	9.600 cm
Package 1 length	13.000 cm
Package 1 weight	317.000 g
Unit type of package 2	S02
Number of units in package 2	10
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.533 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.8324906667
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04891056
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.008271296
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.1548197867
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.0444923093
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	25b7f895-3732-43c8-9910-ef6005058640
End of life manual availability	ENVEOLI1103010EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Product Brochures
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Handout
Operating Manuals
Technical illustration
Application Notes
Certificates (MSDS)
Declaration of Conformity
eTechPub
Declaration of Conformity (Sustainability)
Firmware
Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Wireless access point Ethernet TCP cloud connected enabler to monitor data - 3D CAD

VERSION

1.0

DATE

10 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

Harmony Hub ecosystem

VERSION

1.0

DATE

29 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.5 MB

ZIP

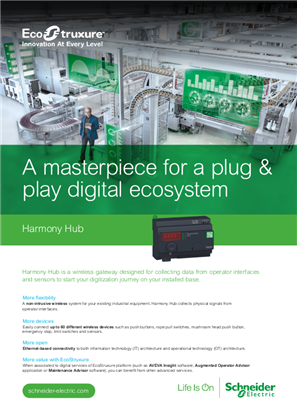

Harmony Hub A masterpiece for a plug and play digital ecosystem

VERSION

1.0

DATE

21 Mar 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.7 MB

PDF

Harmony Hub A masterpiece for a plug and play digital ecosystem

VERSION

1.0

DATE

14 May 2019

REVISION

1.0

DOWNLOAD (PDF) 3.7 MB

ZIP

Wireless and batteryless limit switches. XCMW range

VERSION

1.1

DATE

26 Apr 2024

REVISION

1.1

DOWNLOAD (ZIP) 4.4 MB

ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

28 May 2026

REVISION

1.0

DOWNLOAD (ZIP) 351.1 KB

ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

28 May 2026

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

ZIP

ZBRZ1 - Harmony XB5R, Advanced commissioning module for ZBRT transmitters, Instruction Sheet

VERSION

4.0

DATE

30 Jan 2026

REVISION

4.0

DOWNLOAD (ZIP) 3 MB

ZIP

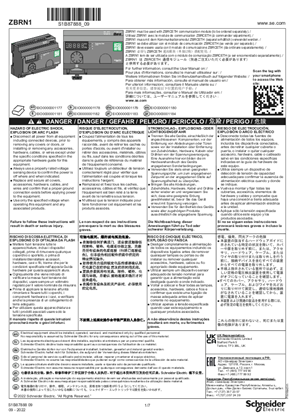

ZBRN1 Standard Harmony Hub, Instruction Sheet

VERSION

4.0

DATE

20 May 2024

REVISION

4.0

DOWNLOAD (ZIP) 1.8 MB

ZIP

XCMW... Wireless / Batteryless limit switch, Instruction Sheet

VERSION

2.0

DATE

04 Dec 2023

REVISION

2.0

DOWNLOAD (ZIP) 4 MB

ZIP

XCKW... Wireless / Batteryless limit switch, Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

ZIP

Wireless / Batteryless limit switch

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

ZIP

XC Wireless Switches for cable-less and energy-saving detection

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.1 MB

ZIP

PowerLogic PowerTag Energy - Selection guide

VERSION

2.14

DATE

17 Apr 2026

REVISION

2.14

DOWNLOAD (ZIP) 1.8 MB

ZIP

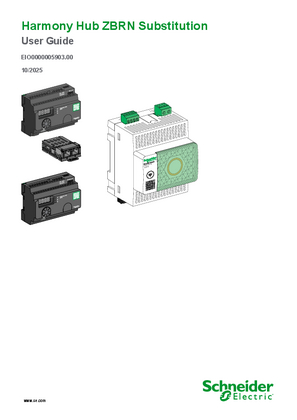

Harmony Hub ZBRN Substitution, User Guide

VERSION

1.0

DATE

17 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 2 MB

ZIP

Harmony Wireless and Batteryless Push Button Quick Start Guide

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.1 MB

ZIP

Harmony XB5R - ZBRN1/ZBRN2, User Manual

VERSION

5.0

DATE

29 Sep 2023

REVISION

5.0

DOWNLOAD (ZIP) 8 MB

ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 216.5 KB

ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

19 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 265.1 KB

ZIP

Harmony® XB5R, Application Manual

VERSION

2.0

DATE

29 Sep 2023

REVISION

2.0

DOWNLOAD (ZIP) 2.7 MB

ZIP

UL-Certificate-XB4R XB5R Wireless & Batteryless pushbuttons

VERSION

1.0

DATE

30 Jun 2026

REVISION

1.0

DOWNLOAD (ZIP) 299.5 KB

ZIP

XB4R XB5R Wireless & Batteryless pushbuttons

VERSION

1.0

DATE

30 Jun 2026

REVISION

1.0

DOWNLOAD (ZIP) 321.2 KB

ZIP

CSA-Certificate-wireless device data exchanger ZBRN1, ZBRN2, ZBRRA, ZBRRC, ZBRRD, and ZBRRH

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 114.4 KB

ZIP

IECEE CB - SCHEME-Certificate-Solo range ZBRN ZBRA ZBRR

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 260.1 KB

ZIP

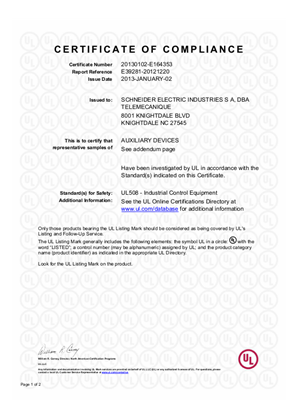

ZBRN1 ZBRN2 Access points ZBRCETH Communication module ZBRA2 External antenna

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 91.2 KB

ZIP

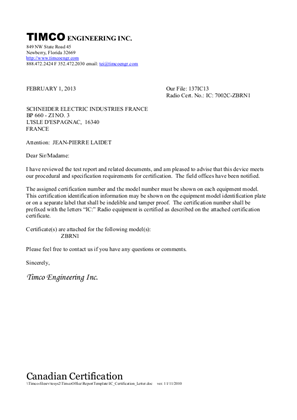

ZBRN1 Access points

VERSION

1.0

DATE

28 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 118.6 KB

ZIP

ZBRN1 Access points

VERSION

1.0

DATE

28 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 134.8 KB

ZIP

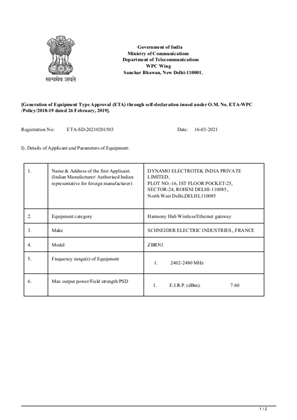

ETA India_ZBRN1 Access Point of Wireless and Batteryless pushbuttons

VERSION

1.0

DATE

11 May 2023

REVISION

1.0

DOWNLOAD (ZIP) 57.4 KB

ZIP

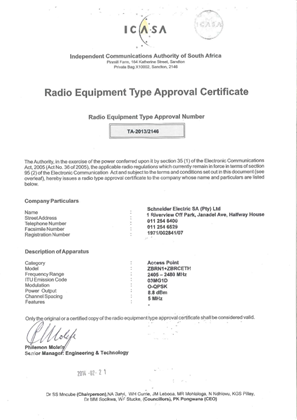

ZBRN1 ZBRCETH Wireless & Batteryless pushbuttons equipments

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 194.7 KB

ZIP

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

VERSION

1.0

DATE

30 Jun 2026

REVISION

1.0

DOWNLOAD (ZIP) 275.3 KB

ZIP

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

VERSION

1.0

DATE

19 Jan 2026

REVISION

1.0

DOWNLOAD (ZIP) 451.7 KB

ZIP

XB4R XB5R Wireless & Batteryless pushbuttons equipments

VERSION

1.0

DATE

28 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 434 KB

ZIP

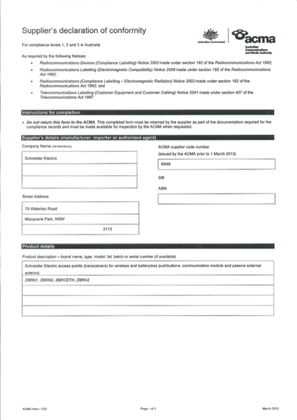

RCM-Declaration of Conformity-ZBRN Wireless & Batteryless pushbuttons equipment

VERSION

1.0

DATE

09 May 2023

REVISION

1.0

DOWNLOAD (ZIP) 414.9 KB

ZIP

Harmony XB5R (English)

VERSION

6.0

DATE

07 Jul 2025

REVISION

6.0

DOWNLOAD (ZIP) 1.8 MB

ZIP

English

VERSION

2.1

DATE

23 Oct 2024

REVISION

2.1

DOWNLOAD (ZIP) 193.7 KB

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 China RoHS Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

ZBRN1 REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

Harmony Hub ZBRN1/ZBRN2, Firmware

VERSION

1.0

DATE

11 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB

ZIP

Harmony Hub ZBRN1/ZBRN2, Firmware

VERSION

1.0

DATE

11 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB

ZIP

Harmony Hub ZBRN1/ZBRN2, Firmware

VERSION

1.0

DATE

29 Sep 2021

REVISION

1.0

DOWNLOAD (ZIP) 734.6 KB

ZIP

Harmony XB5R DTM Library

VERSION

2.0

DATE

18 Jul 2023

REVISION

2.0

DOWNLOAD (ZIP) 258.5 MB

Colour ()

Harmony XB5R Harmony Hub wireless ethernet gateway Zigbee green power gateway, wireless to modbus TCP, 24...240V AC DC

Item Number: ZBRN1

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Handout

Operating Manuals

Technical illustration

Application Notes

Certificates (MSDS)

Declaration of Conformity

eTechPub

Declaration of Conformity (Sustainability)

Firmware

Software - Data Library

Wireless access point Ethernet TCP cloud connected enabler to monitor data - 3D CAD

Harmony Hub ecosystem

Harmony Hub A masterpiece for a plug and play digital ecosystem

Harmony Hub A masterpiece for a plug and play digital ecosystem

Wireless and batteryless limit switches. XCMW range

Wireless Push Button and Configurable Receiver

Wireless Push Button and Configurable Receiver

ZBRZ1 - Harmony XB5R, Advanced commissioning module for ZBRT transmitters, Instruction Sheet

ZBRN1 Standard Harmony Hub, Instruction Sheet

XCMW... Wireless / Batteryless limit switch, Instruction Sheet

XCKW... Wireless / Batteryless limit switch, Instruction Sheet

Wireless / Batteryless limit switch

XC Wireless Switches for cable-less and energy-saving detection

PowerLogic PowerTag Energy - Selection guide

Harmony Hub ZBRN Substitution, User Guide

Harmony Wireless and Batteryless Push Button Quick Start Guide

Harmony XB5R - ZBRN1/ZBRN2, User Manual

Technical Illustration - Wiring

Technical Illustration - Dimensions

Harmony® XB5R, Application Manual

UL-Certificate-XB4R XB5R Wireless & Batteryless pushbuttons

XB4R XB5R Wireless & Batteryless pushbuttons

CSA-Certificate-wireless device data exchanger ZBRN1, ZBRN2, ZBRRA, ZBRRC, ZBRRD, and ZBRRH

IECEE CB - SCHEME-Certificate-Solo range ZBRN ZBRA ZBRR

ZBRN1 ZBRN2 Access points ZBRCETH Communication module ZBRA2 External antenna

ZBRN1 Access points

ZBRN1 Access points

ETA India_ZBRN1 Access Point of Wireless and Batteryless pushbuttons

ZBRN1 ZBRCETH Wireless & Batteryless pushbuttons equipments

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD

XB4R XB5R Wireless & Batteryless pushbuttons equipments

RCM-Declaration of Conformity-ZBRN Wireless & Batteryless pushbuttons equipment

Harmony XB5R (English)

English

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 China RoHS Regulation

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 EU RoHS Directive

ZBRN1 REACh Regulation

ZBRN1 REACh Regulation

ZBRN1 REACh Regulation
