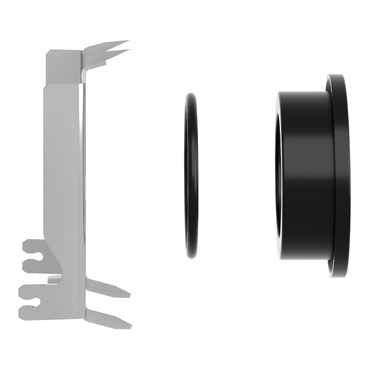

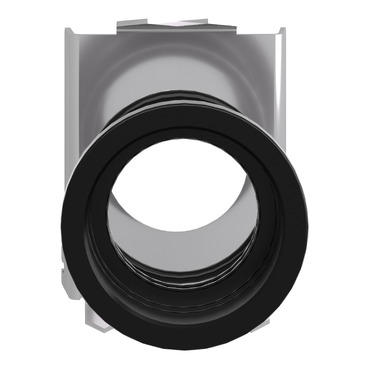

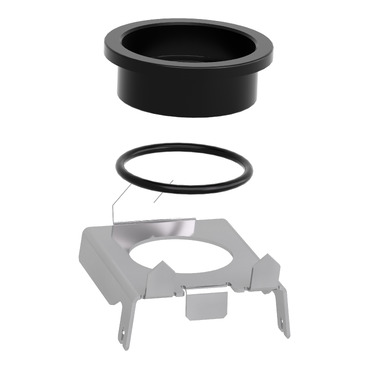

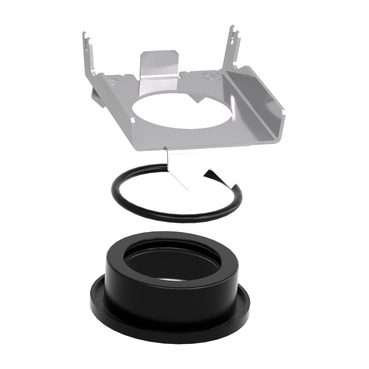

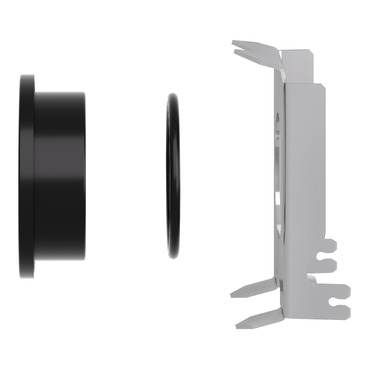

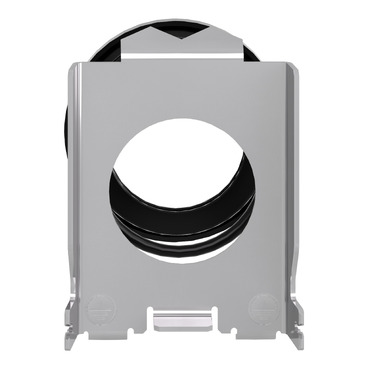

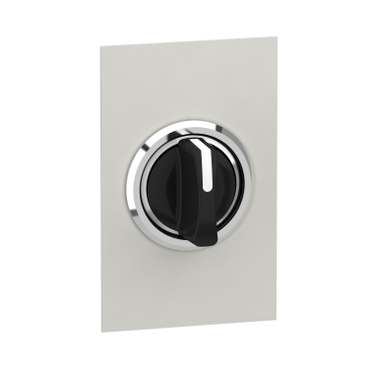

Harmony XB4 Flush mounting kit metal, black, for selector switch and illuminated push-button 22mm

Home ProductsIndustrialHarmonyFlush mounting kit

Harmony XB4 Flush mounting kit metal, black, for selector switch and illuminated push-button 22mm

Item Number: ZB4BZ022

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

flush mounting kit

Product compatibility

  • ZB4BK
  • ZB4BD.8
  • ZB4BD
  • ZB4BD.9
  • ZB4BJ
  • ZB4BH..3
  • ZB4BA.6
  • ZB4BW

Surface finish

chromium plated

Physical

Ip degree of protection

  • IP66 (front face) conforming to IEC 60529
  • IP69 (front face) conforming to IEC 60529
  • IP69K (front face) conforming to DIN 40050-9

Ik degree of protection

IK06 conforming to IEC 50102

Quantity per set

set of 1

Net weight

0.021 kg

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

Others

At least in Europe

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

80

Package 1 bare product quantity

1

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Accessory / separate part category

mounting and fixing accessory

Accessory / separate part destination

  • selector switch with high bezel and high guard
  • illuminated push-button with high bezel and high guard

Mounting diameter

30.5 mm

Customizable

no

Customizable

0

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.500 cm

Package 1 width

5.200 cm

Package 1 length

5.500 cm

Package 1 weight

33.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.953 kg

Sustainable packaging

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
