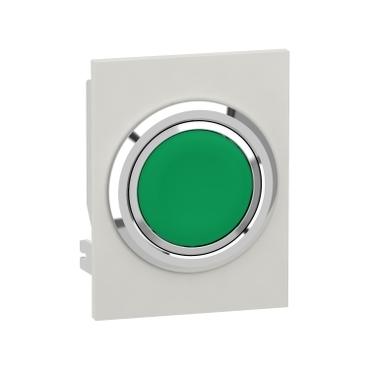

Harmony XB4 Flush mounting kit 30mm for push-button and pilot light 22mm Harmony XB4, metal

Item Number: ZB4BZ021

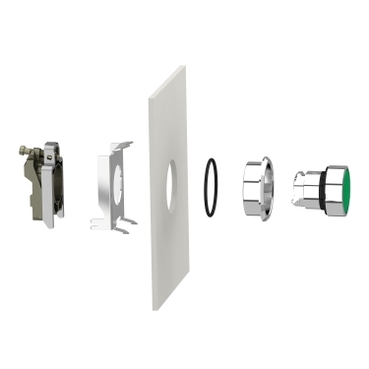

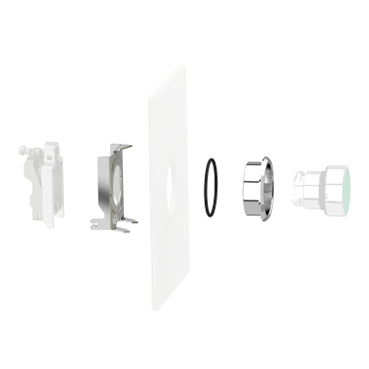

This Harmony XB4, flush mounting kit is compatible with Harmony XB4, flush push-buttons and pilot lights. This kit allows to flush mount any push-button or pilot light of the XB4 series. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Product or component type

flush mounting kit

Product compatibility

  • ZB4BH flush
  • ZB4BL
  • ZB4BA flush
  • ZB4BV

Surface finish

chromium plated

Physical

Ip degree of protection

  • IP66 (front face) conforming to IEC 60529
  • IP69 (front face) conforming to IEC 60529
  • IP69K (front face) conforming to DIN 40050-9

Ik degree of protection

IK06 conforming to IEC 50102

Quantity per set

set of 1

Net weight

0.019 kg

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308035EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Legacy weee scope

In

Package 1 bare product quantity

1

At least in Europe

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Accessory / separate part category

mounting and fixing accessory

Accessory / separate part destination

  • pilot light
  • push-button

Mounting diameter

30.5 mm

Customizable

no

Customizable

0

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.400 cm

Package 1 width

5.300 cm

Package 1 length

5.500 cm

Package 1 weight

32.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.860 kg

Unit type of package 3

P06

Number of units in package 3

1280

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

54.260 kg

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.2268166074

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0041846738

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0064182206

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0404763938

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.2778958956

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

ENVEOLI2308035EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
