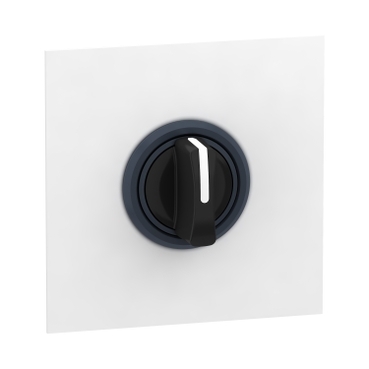

Harmony XB5 Flush mounting kit Ø30 for selector switches and illuminated push-buttons Ø22, plastic
Item Number: ZB5AZ022
This Harmony XB5, flush mounting kit is compatible with Harmony XB5 illuminated push-buttons and selector switches. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design.
Datasheet
Specifications
Design
Range of product
Product or component type
Product compatibility
- ZB5AD
- ZB5RTA
- ZB5AD.8
- ZB5RZA0
- ZB5AK
- ZB5AA.6
- ZB5AD.9
- ZB5AJ
- ZB5AW
- ZB5AH..3
Physical
Ip degree of protection
- IP66 (front face) conforming to IEC 60529
- IP69 (front face) conforming to IEC 60529
- IP69K (front face) conforming to DIN 40050-9
Ik degree of protection
Quantity per set
Net weight
Eu rohs directive
Others
Package 1 bare product quantity
Package 2 bare product quantity
Accessory / separate part category
Accessory / separate part destination
- selector switch with high bezel and high guard
- illuminated push-button with high bezel and high guard
Main colour tint
Mounting diameter
Customizable
Customizable
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Minimum percentage of recycled plastic content
