Harmony XB5 Flush mounting kit Ø30 for push-buttons and pilot lights Ø22, plastic, 2-line legend

Home ProductsIndustrialHarmonyFlush mounting kit

Harmony XB5 Flush mounting kit Ø30 for push-buttons and pilot lights Ø22, plastic, 2-line legend

Item Number: ZB5AZ025

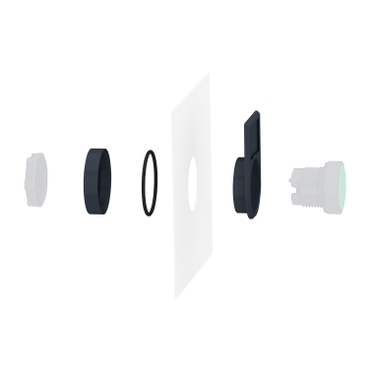

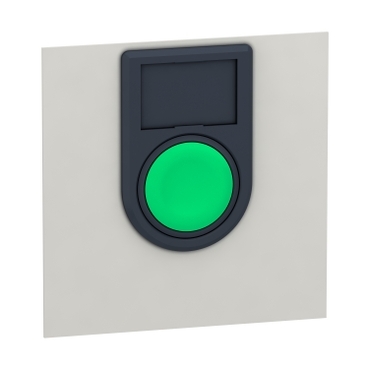

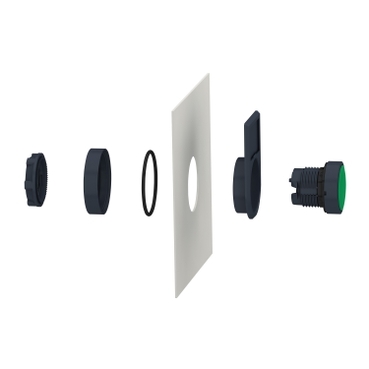

This Harmony XB5, flush mounting kit is compatible with Harmony XB5 flush push-buttons and pilot lights and has a 2-line legend. It allows the installation of devices on control panels to be more resilient to side impacts due to passing objects, tools, opening doors. It allows new aesthetic style for your machines thanks to the flush design. It provides clear labelling area for simple indication of the button function.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5

Product or component type

flush mounting kit

Product compatibility

  • XB7NL
  • XB7EV
  • XB5EV
  • XB7ND
  • XB7NG
  • ZB5AA
  • XB7NW
  • XB7NJ
  • ZB5AH
  • ZB5AV
  • ZB5AL
  • XB7NA

Physical

Ip degree of protection

  • IP66 (front face) conforming to IEC 60529
  • IP69 (front face) conforming to IEC 60529
  • IP69K (front face) conforming to DIN 40050-9

Ik degree of protection

IK03 conforming to IEC 50102

Quantity per set

set of 1

Net weight

0.007 kg

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

Others

Legacy weee scope

In

At least in Europe

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

80

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Accessory / separate part category

mounting and fixing accessory

Accessory / separate part destination

  • pilot light
  • push-button

Main colour tint

black

Mounting diameter

30.5 mm

Customizable

no

Customizable

0

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.600 cm

Package 1 width

4.300 cm

Package 1 length

5.200 cm

Package 1 weight

17.000 g

Unit type of package 2

S02

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.660 kg

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Technical illustration

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Plastic flush mounting kit for legend 18x27 (PB and PL) - 3D CAD
ZIP

Plastic flush mounting kit for legend 18x27 (PB and PL) - 3D CAD

VERSION

1.0

DATE

11 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.6 MB
Discover the Harmony XB5 plastic Control and signaling units catalog
ZIP

Discover the Harmony XB5 plastic Control and signaling units catalog

VERSION

18.0

DATE

10 Apr 2025

REVISION

18.0

DOWNLOAD (ZIP) 33.1 MB

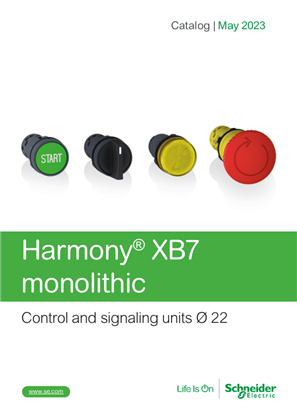

Harmony XB7 monolithic pushbuttons, switches and pilot lights, Ø 22
