Harmony XVU Fixing unit for modular tower lights black, 60mm, 3 pins direct mounting

Home ProductsIndustrialHarmonyFixing unit for modular tower lights

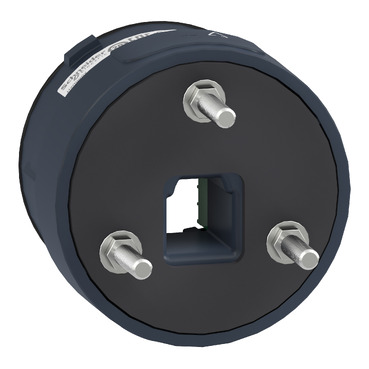

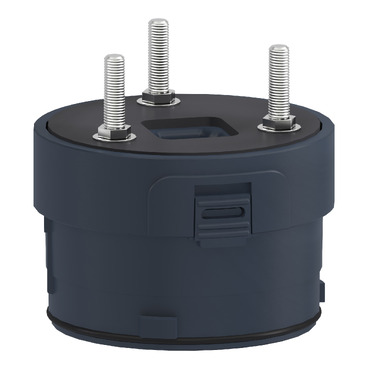

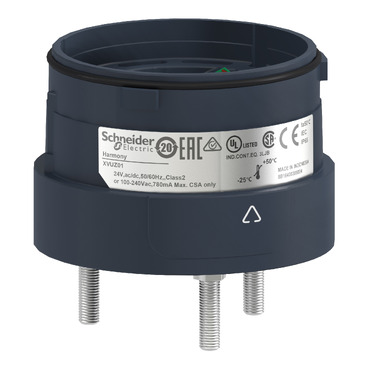

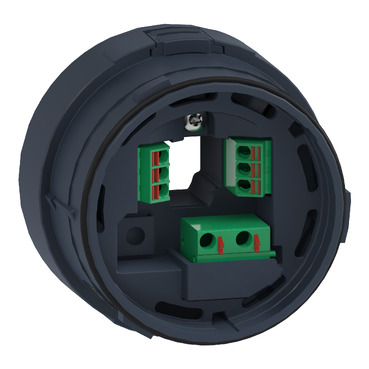

Harmony XVU Fixing unit for modular tower lights black, 60mm, 3 pins direct mounting

Item Number: XVUZ01

This black fixing unit is a mounting and fixing accessory for modular tower light. It is supplied with 110V-240V AC/DC and has a mounting diameter of 60mm. It allows users with easy installation via push-in terminals. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Product compatibility

  • top: AC body
  • top: DC body
  • top: swivel mounting support

Physical

Pin number

3

Mounting support

direct mounting

Connections - terminals

push-in

Length

17 mm

Net weight

0.063 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

IP65

Product certifications

  • CSA
  • UL
  • CE

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

Eu rohs directive

Compliant By Exemption

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • PBT (polybutylene terephthalate) V-0 conforming to UL 94
  • ABS (acrylonitrile butadiene-styrene)
  • PC (polycarbonate)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

24

Package 3 bare product quantity

192

Average percentage of recycled plastic content

0 %

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

Accessory / separate part type

mounting plate

Accessory / separate part category

mounting and fixing accessory

Component name

XVU

Mounting diameter

60 mm

Housing colour

black

[us] rated supply voltage

  • 24 V AC/DC
  • 110...240 V AC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.300 cm

Package 1 width

9.300 cm

Package 1 length

13.400 cm

Package 1 weight

164.000 g

Unit type of package 2

S03

Number of units in package 2

24

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.678 kg

Unit type of package 3

P06

Number of units in package 3

192

Package 3 height

77.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

36.800 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.5 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.4140871041386173

Carbon footprint of the manufacturing phase [a1 to a3]

0.4 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00823810220687233

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.06515863724170227

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.054902651759058715

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.5423864953462506

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

China rohs label

5

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
XVUZ01_CAD
ZIP

XVUZ01_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 503.3 KB
Fixing unit - 3 pins direct mounting - black
ZIP

Fixing unit - 3 pins direct mounting - black

VERSION

1.0

DATE

11 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.9 MB
Catalog of Harmony XVU modular tower light, dia. 60
ZIP

Catalog of Harmony XVU modular tower light, dia. 60

VERSION

8.0

DATE

06 Aug 2024

REVISION

8.0

DOWNLOAD (ZIP) 5.5 MB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 300 KB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet
ZIP

XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 2.8 MB
XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet
ZIP

XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet

VERSION

2.0

DATE

21 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 4.1 MB
XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet
ZIP

XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 12 MB
XVU... Modular tower lights (Ø 60), Instrution Sheet
ZIP

XVU... Modular tower lights (Ø 60), Instrution Sheet

VERSION

2.0

DATE

14 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 10.1 MB
Technical Illustration - Wiring
ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 238.2 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 180.8 KB

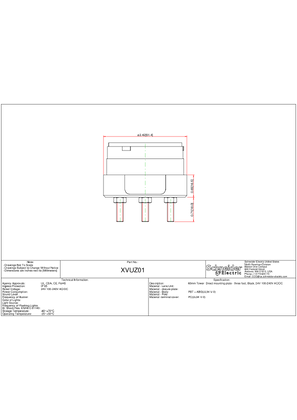

XVUZ01_2D_Drwng_PDF
