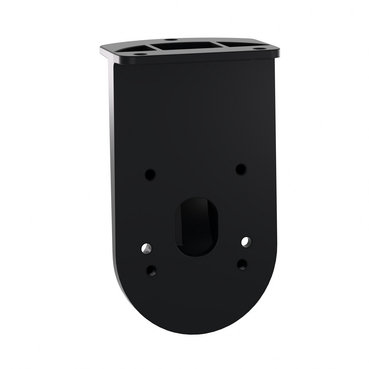

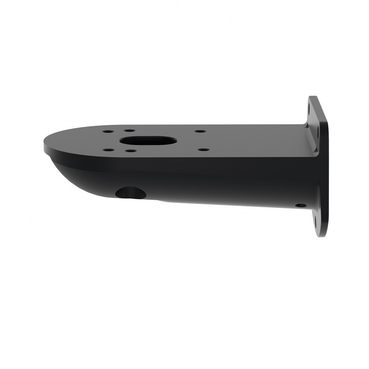

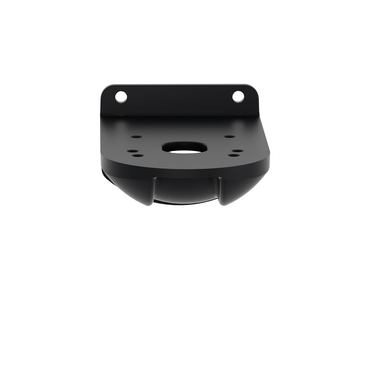

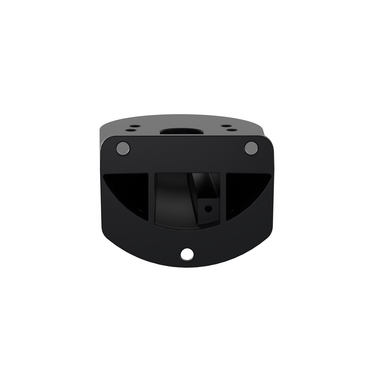

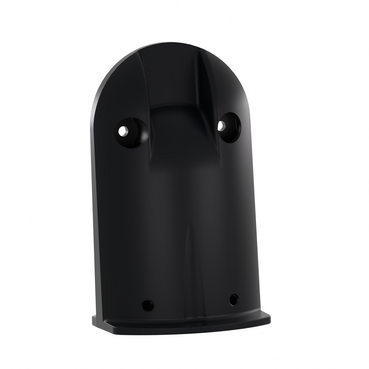

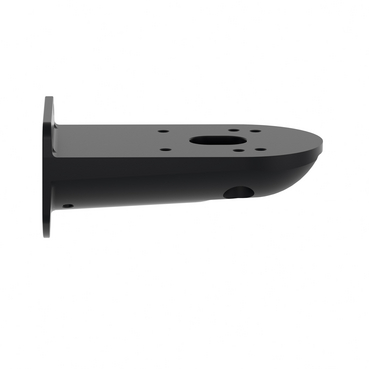

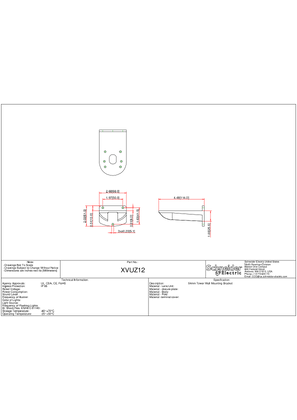

Harmony XVU Fixing plate for use on vertical support for modular tower lights black, 60mm

Home ProductsIndustrialHarmonyFixing plate for use on vertical support for modular tower lights

Harmony XVU Fixing plate for use on vertical support for modular tower lights black, 60mm

Item Number: XVUZ12

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Product compatibility

  • XVUZ02
  • XVUZ02Q
  • XVUZ400
  • XVUZ800
  • XVUZ05

Physical

Mounting support

wall mounted

Length

8 mm

Net weight

0.36 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

IP65

Product certifications

  • CSA
  • UL
  • CE

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

aluminium V-0 conforming to UL 94

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

320

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Accessory / separate part type

fixing plate

Accessory / separate part category

mounting and fixing accessory

Component name

XVU

Mounting diameter

60 mm

Housing colour

black

[us] rated supply voltage

  • 24 V AC/DC
  • 110...240 V AC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.000 cm

Package 1 width

7.000 cm

Package 1 length

11.500 cm

Package 1 weight

496.000 g

Unit type of package 2

S01

Number of units in package 2

10

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.193 kg

Unit type of package 3

P06

Number of units in package 3

320

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

176.176 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.366212023649242

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.047074869753556174

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.3723350699525845

Carbon footprint of the installation phase [a5]

0.4 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.31372943862319264

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

3.0993514019785757

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
