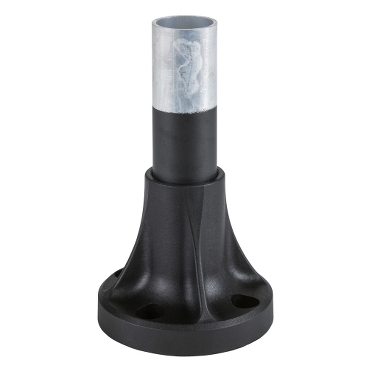

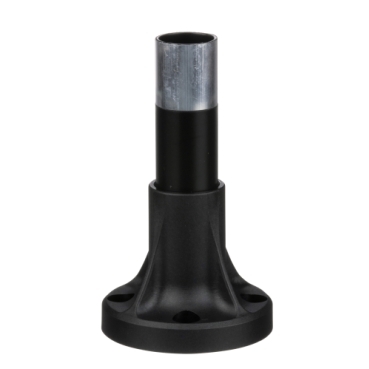

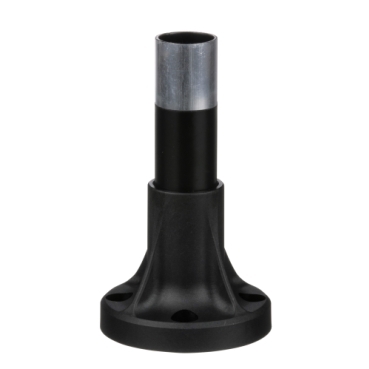

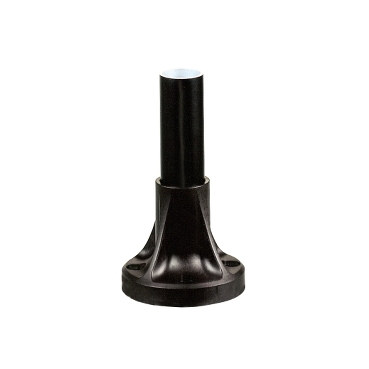

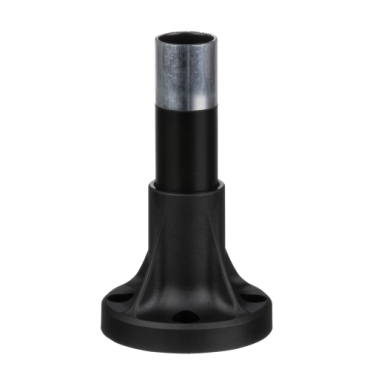

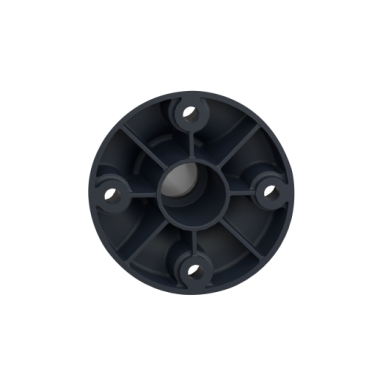

Harmony XVB Fixing base for modular tower lights plastic, Ø70, 80mm black aluminium support tube + black fixing plate

Item Number: XVBZ02

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110673579	-

Specifications

Design

Range of product	Harmony XVB
Product or component type	fixing base
Product compatibility	XVBL. XVBC.
Warranty	18 months

Physical

Net weight	0.11 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0709007EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message	XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
Package 2 bare product quantity	100
Package 3 bare product quantity	400
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Package 1 bare product quantity	1
Legacy weee scope	Out
Accessory / separate part designation	fixing base
Accessory / separate part category	mounting and fixing accessories
Accessory / separate part destination	beacons and indicator banks Ø 70 mm
Accessory / separate part type	fixing base
Kit composition	black plastic fixing plate Ø 25 mm aluminium support tube
Height under base unit	80 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	7.000 cm
Package 1 length	12.200 cm
Package 1 weight	85.900 g
Unit type of package 2	S04
Number of units in package 2	100
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	9.425 kg
Unit type of package 3	P06
Number of units in package 3	400
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	50.700 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.1503789977407481
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.2660471122005882
Carbon footprint of the distribution phase [a4]	0.3 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.000682668628411166
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.23439134308426846
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.6515001216540162
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	820bfe30-3066-4d67-842a-9314ccc6746b
China rohs label	5
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
End of Life Manual
Installation Instruction
Operating Manuals
Technical illustration
Specification Guide
Technical Drawing
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

XVBZ02_CAD

VERSION

1.0

DATE

06 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 201.1 KB

ZIP

XVB - 70 mm diameter indicator bank PEP

VERSION

1.0

DATE

01 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

Harmony XVB Tower Light

VERSION

1.0

DATE

16 Feb 2025

REVISION

1.0

DOWNLOAD (ZIP) 386.4 KB

ZIP

Harmony XVB Tower Light

VERSION

1.0

DATE

29 Jul 2025

REVISION

1.0

DOWNLOAD (ZIP) 280.1 KB

ZIP

XVBL... /C..., XVDL.../C... Beacons and indicator banks Ø 70 mm Universal (EN)

VERSION

4.0

DATE

21 Aug 2024

REVISION

4.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

Harmony™ XVB to XVB7 Modular Tower Lights substitution guide

VERSION

1.0

DATE

18 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB

ZIP

Technical Illustration - Dimension

VERSION

1.0

DATE

13 Nov 2024

REVISION

1.0

DOWNLOAD (ZIP) 273.1 KB

ZIP

Tender specifications KDP

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 24.8 KB

ZIP

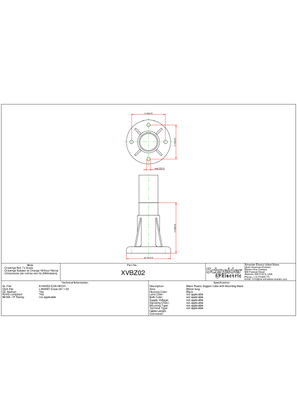

XVBZ02_2D_Drwng_PDF
