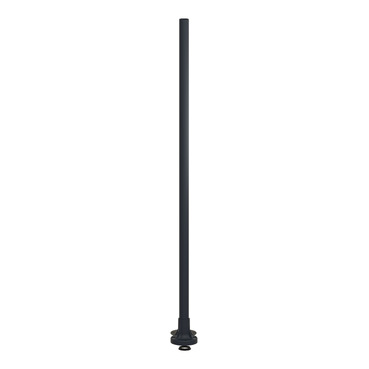

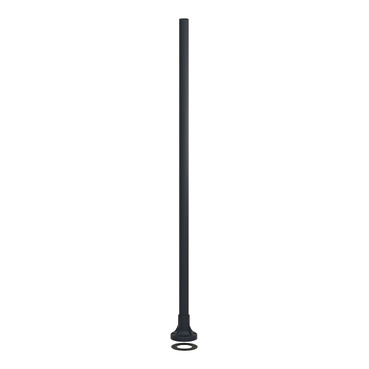

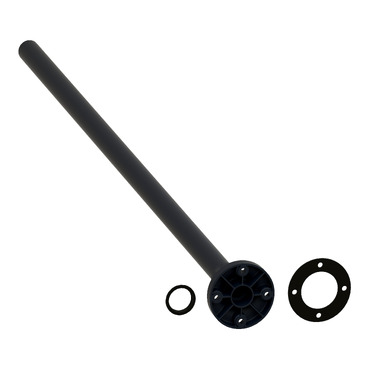

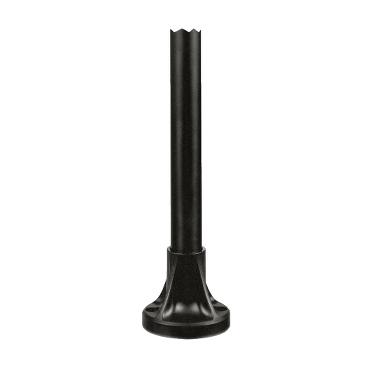

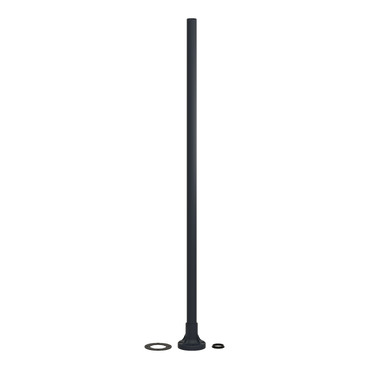

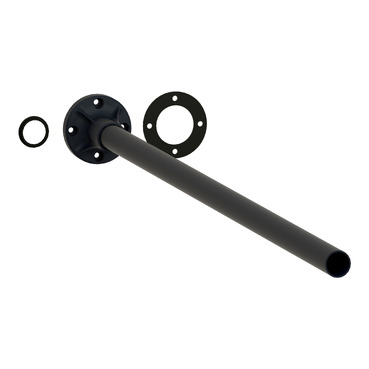

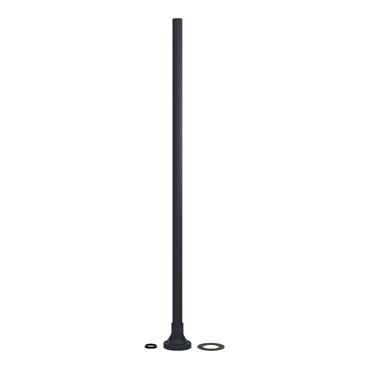

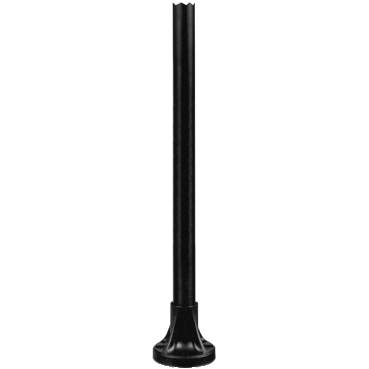

Harmony XVB Fixing base for modular tower lights plastic, Ø70, 780mm black aluminium support tube + black fixing plate

Item Number: XVBZ04

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110673678	-
50	CAR	13389110673675	-

Specifications

Design

Range of product	Harmony XVB
Product or component type	fixing base
Product compatibility	XVBC. XVBL.
Warranty	18 months

Physical

Net weight	0.325 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP0709007EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Important message	XVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
Legacy weee scope	Out
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	50
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part designation	fixing base
Accessory / separate part category	mounting and fixing accessories
Accessory / separate part destination	beacons and indicator banks Ø 70 mm
Accessory / separate part type	fixing base
Kit composition	black plastic fixing plate Ø 25 mm aluminium support tube
Height under base unit	780 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.000 cm
Package 1 width	8.000 cm
Package 1 length	83.000 cm
Package 1 weight	322.000 g
Unit type of package 2	P12
Number of units in package 2	50
Package 2 height	30.000 cm
Package 2 width	80.000 cm
Package 2 length	120.000 cm
Package 2 weight	28.100 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.2272821638
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1061564904
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0887965456
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.6154656315
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.0377008313
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	124e2d7a-5b1e-45ca-b93c-220dd91b55b6
China rohs label	5
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Installation Instruction
Operating Manuals
Technical illustration
Specification Guide
Technical Drawing
eTechPub
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

XVBZ04_CAD

VERSION

1.0

DATE

06 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 201.2 KB

ZIP

XVB - 70 mm diameter indicator bank PEP

VERSION

1.0

DATE

01 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB

ZIP

XVBL... /C..., XVDL.../C... Beacons and indicator banks Ø 70 mm Universal (EN)

VERSION

4.0

DATE

21 Aug 2024

REVISION

4.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

Harmony™ XVB to XVB7 Modular Tower Lights substitution guide

VERSION

1.0

DATE

18 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB

ZIP

Technical Illustration - Dimension

VERSION

1.0

DATE

13 Nov 2024

REVISION

1.0

DOWNLOAD (ZIP) 293 KB

ZIP

Tender specifications KDP

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 24.8 KB

ZIP

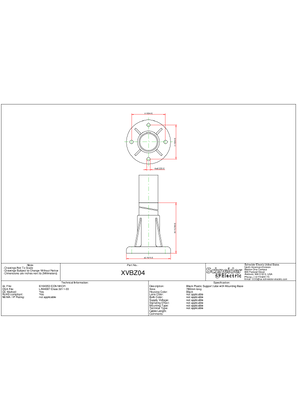

XVBZ04_2D_Drwng_PDF
