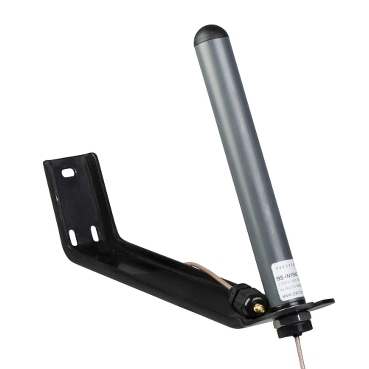

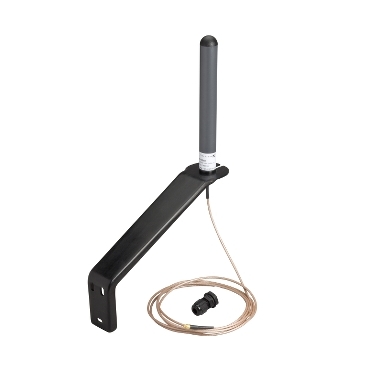

Harmony eXLhoist External antenna standard, for base station

Home ProductsIndustrialHarmonyExternal antenna

Harmony eXLhoist External antenna standard, for base station

Item Number: ZARC03

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width150 mm

Height icon

Height15 mm

Depth icon

Depth15 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony eXLhoist

Product compatibility

control station ZARB

Physical

Width

150 mm

Height

15 mm

Depth

15 mm

Net weight

0.2 kg

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polypropylene

Others

Commercial status history

  • SESA301466
  • Mon Aug 12 19:24:00 EDT 2024
  • From Import Local
  • From 08 to 19

Package 1 bare product quantity

1

Accessory / separate part type

antenna

Accessory / separate part category

installation accessory

Cable length

2 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.2 cm

Package 1 width

12.8 cm

Package 1 length

25.1 cm

Package 1 weight

170.0 g

Unit type of package 2

S02

Number of units in package 2

10

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

2.109 kg

Package 3 height

15 cm

Scip number

6e438e59-42d1-4633-bfe2-cb5ef607659b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications
