Harmony XB5R Empty handy box plastic, dark grey, 1 cut-out, 22mm

Home ProductsIndustrialHarmonyEmpty handy box

Harmony XB5R Empty handy box plastic, dark grey, 1 cut-out, 22mm

Item Number: ZBRM01

This empty handy box provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments This empty handy box is realise with a green plastic

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB5R

Product or component type

empty handy box

Product destination

for XB5R Ø 22 mm control units

Warranty

18 months

Physical

Net weight

0.2 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...55 °C

Ip degree of protection

IP65 conforming to IEC 60529

Ik degree of protection

IK03 conforming to IEC 62262

Standards

  • ETSI EN 301 489-1
  • ETSI EN 300 440-1
  • ETSI EN 300 440-2
  • ETSI EN 301 489-3
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-5-1

Product certifications

  • C-Tick
  • FCC
  • ANATEL
  • RSS
  • BT 2006/95/EC
  • GOST
  • CE
  • SRRC

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP101106EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

polycarbonate

Others

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

Out

At least in Europe

Weee label

No

Device short name

ZBRM

Mounting diameter

22 mm

Control station application

one function

Colour of base of enclosure

dark grey (RAL 7016)

Colour of cover

dark grey (RAL 7016)

Cad overall width

100.6 mm

Cad overall height

60 mm

Main group

1 cut-out

Group of product

handy grey

Compatibility code

XB5R

Directives

  • 2004/108/EC - electromagnetic compatibility
  • 1999/5/EC - R&TTE directive

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.3 cm

Package 1 width

9.0 cm

Package 1 length

9.3 cm

Package 1 weight

98.0 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

4.014 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

1 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.8954325333

Carbon footprint of the manufacturing phase [a1 to a3]

0.9 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.015462048

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0026147968

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0489430293

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.9624524075

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

25b7f895-3732-43c8-9910-ef6005058640

End of life manual availability

ENVEOLI1103010EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Environmental Disclosure

  • Installation Instruction

  • End of Life Manual

  • Operating Manuals

  • Technical illustration

  • Application Notes

  • Declaration of Conformity

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

  • Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.
Control station SPS empty 1 hole
ZIP

Control station SPS empty 1 hole

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Control station SPS empty 1 hole
ZIP

Control station SPS empty 1 hole

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Control station SPS empty 1 hole - 3D CAD
ZIP

Control station SPS empty 1 hole - 3D CAD

VERSION

1.0

DATE

29 Jun 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB
Control station - SPS - empty - 1 hole - dark grey RAL 7016
ZIP

Control station - SPS - empty - 1 hole - dark grey RAL 7016

VERSION

1.0

DATE

16 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 4.1 MB
Harmony Hub A masterpiece for a plug and play digital ecosystem
PDF

Harmony Hub A masterpiece for a plug and play digital ecosystem

VERSION

1.0

DATE

14 May 2019

REVISION

1.0

DOWNLOAD (PDF) 3.7 MB
Wireless Push Button and Configurable Receiver
ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

30 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

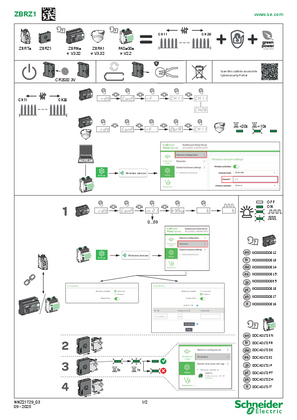

ZBRZ1 - Harmony XB5R, Advanced commissioning module for ZBRT transmitters, Instruction Sheet
ZIP

ZBRZ1 - Harmony XB5R, Advanced commissioning module for ZBRT transmitters, Instruction Sheet

VERSION

3.0

DATE

17 Oct 2025

REVISION

3.0

DOWNLOAD (ZIP) 2.9 MB

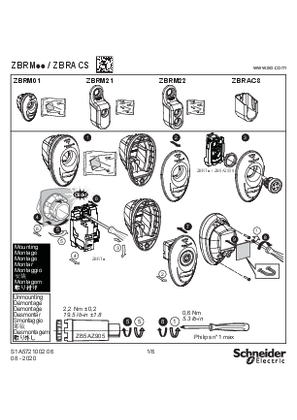

ZBRM.. Mobile Box, Intruction Sheet
ZIP

ZBRM.. Mobile Box, Intruction Sheet

VERSION

6.0

DATE

20 May 2024

REVISION

6.0

DOWNLOAD (ZIP) 3 MB
Wireless Push Button and Configurable Receiver
ZIP

Wireless Push Button and Configurable Receiver

VERSION

1.0

DATE

18 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 351.1 KB
Harmony XB5R Expert Instruction Sheet
ZIP

Harmony XB5R Expert Instruction Sheet

VERSION

5.0

DATE

12 Dec 2023

REVISION

5.0

DOWNLOAD (ZIP) 8.2 MB

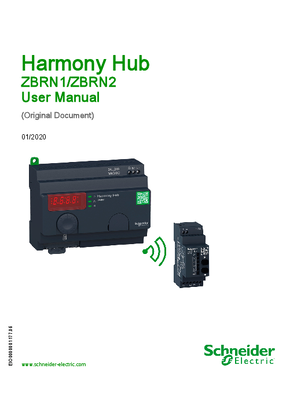

Harmony XB5R - ZBRN1/ZBRN2, User Manual
