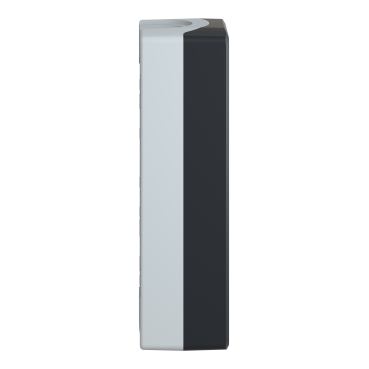

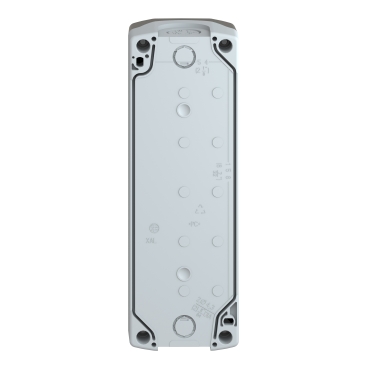

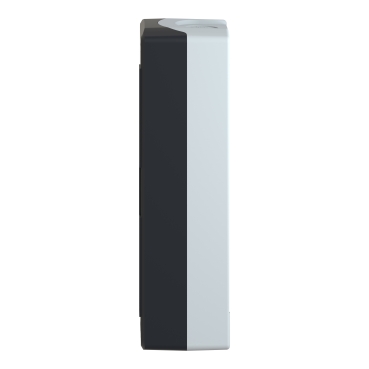

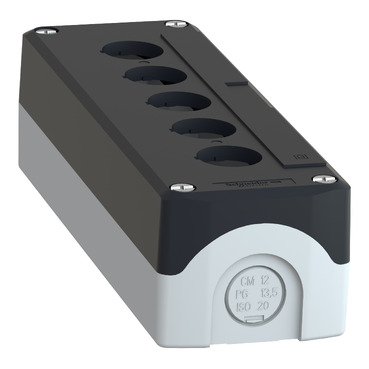

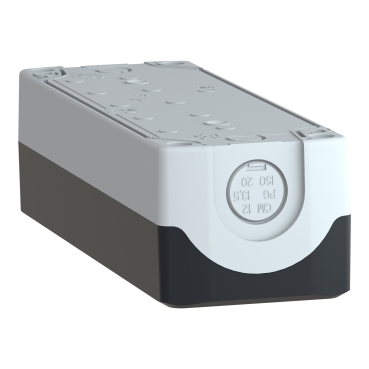

Harmony XALD XALK Empty enclosure plastic, dark grey lid, for push-button 22mm, 5 cut outs

Item Number: XALD05

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110114843	-

Specifications

Design

Range of product	Harmony XALD
Product or component type	empty control station
Product destination	for XB5 Ø 22 mm control and signalling units
Warranty	18 months

Physical

Cable entry	2 knock-outs for cable entry, clamping capacity: 14-14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Net weight	0.322 kg
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ik degree of protection	IK03 conforming to IEC 62262
Standards	IEC 60947-5-1 IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-4 UL 508 IEC 60947-5-5 JIS C8201-1
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506022EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	polycarbonate

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	18
Package 3 bare product quantity	144
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	XALD
Number of cut-out	5 cut-outs
Colour of base of enclosure	light grey (RAL 7035)
Colour of cover	dark grey (RAL 7016)
Assembly style	for customer assembly
Number of horizontal rows	1
Number of vertical rows	5
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Mounting of block	rear mounting front mounting
Electrical composition code	SR2 PR1 SR1 MR1 MF2 MF1 SF1 PF2 PF1 SF2
Main group	5 cut-outs
Group of product	standard grey
Customizable	no
Customizable	1
Compatibility code	XALD
Gcr bridge	XALD05CUST01
Protective treatment	TH
Overvoltage category	class II conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	19.700 cm
Package 1 width	7.000 cm
Package 1 length	7.600 cm
Package 1 weight	299.000 g
Unit type of package 2	S03
Number of units in package 2	18
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.870 kg
Unit type of package 3	P06
Number of units in package 3	144
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	57.836 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.0957875937
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0415461213
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0019423602
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0608024676
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.2000785429
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI2506022EN
Take-back	No
Warranty (in months)	18
