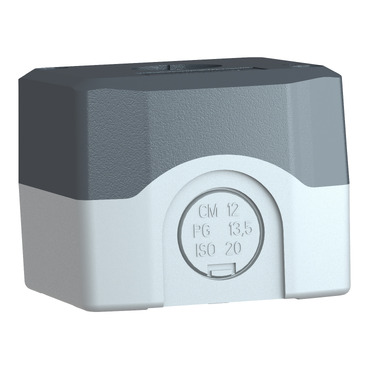

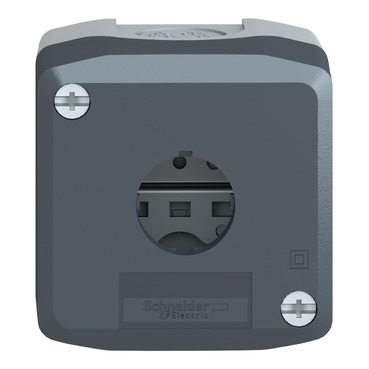

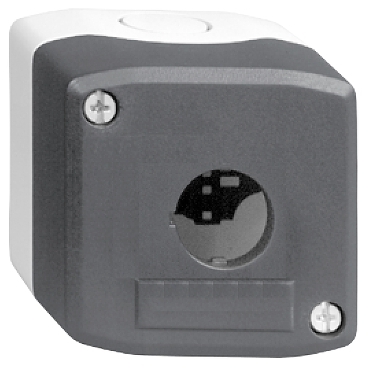

Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push button 22mm, 1 cut out

Harmony XALD XALK, Empty enclosure, plastic, dark grey lid, for push button 22mm, 1 cut out

Item Number: XALD01

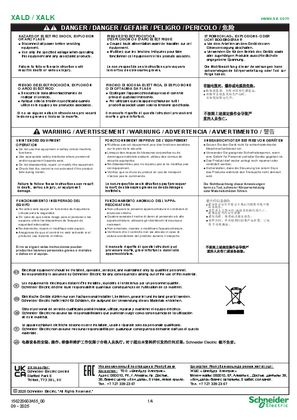

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XALD

Product or component type

empty control station

Product destination

for XB5 Ø 22 mm control and signalling units

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

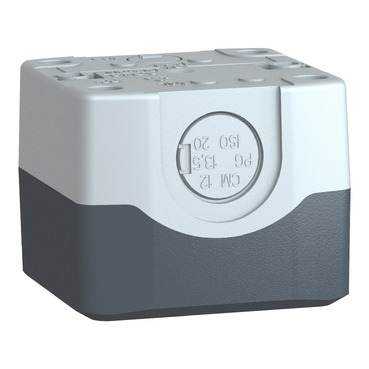

Cable entry

1 knock-out for cable entry, clamping capacity: 14-14 mm|2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm

Ip degree of protection

IP66 conforming to IEC 60529|IP67|IP69|IP69K

Net weight

0.136 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ik degree of protection

IK03 conforming to IEC 62262

Standards

IEC 60947-5-5|IEC 60947-5-4|CSA C22.2 No 14|IEC 60947-5-1|JIS C8201-5-1|IEC 60947-1|UL 508|JIS C8201-1

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

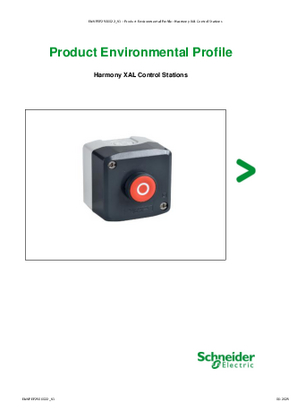

ENVPEP1806010EN

Circularity profile

ENVEOLI1806010EN

Material

Material

polycarbonate

Others

Package 3 bare product quantity

480

Package 2 bare product quantity

60

Package 1 bare product quantity

1

Device short name

XALD

Number of cut-out

1 cut-out

Colour of base of enclosure

light grey (RAL 7035)

Colour of cover

dark grey (RAL 7016)

Assembly style

for customer assembly

Number of horizontal rows

1

Number of vertical rows

1

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

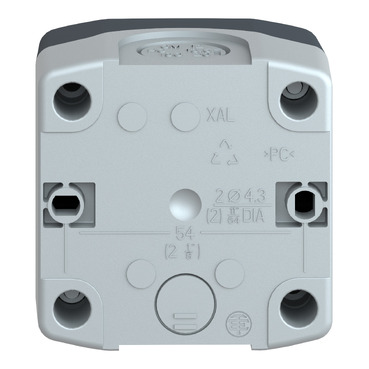

Mounting of block

rear mounting|front mounting

Electrical composition code

MR1|SF1|SF2|SR2|PR1|MF1|MF2|PF1|PF2|SR1

Main group

1 cut-out

Group of product

standard grey

Customizable

no

Customizable

1

Compatibility code

XALD

Gcr bridge

XALD01CUST01

Protective treatment

TH

Overvoltage category

class II conforming to IEC 60536

Nema degree of protection

NEMA 13|NEMA 4X

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.500 cm

Package 1 width

7.000 cm

Package 1 length

7.000 cm

Package 1 weight

115.000 g

Unit type of package 2

S03

Number of units in package 2

60

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.391 kg

Unit type of package 3

P06

Number of units in package 3

480

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

69.404 kg
