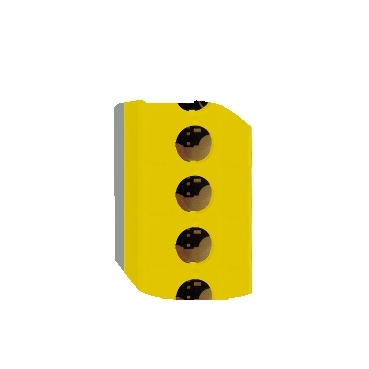

Harmony XALD XALK Empty control station plastic, yellow, 5 cut-outs, unmarked

Item Number: XALK05

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110127348	-

Specifications

Design

Range of product	Harmony XALK
Product or component type	empty control station
Product destination	for XB5 Ø 22 mm control and signalling units
Warranty	18 months

Physical

Cable entry	2 knock-outs for cable entry, clamping capacity: 14-14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm
Ip degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
Net weight	0.322 kg
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Ik degree of protection	IK03 conforming to IEC 62262
Standards	UL 508 IEC 60947-5-1 IEC 60947-1 IEC 60947-5-4 JIS C8201-5-1 IEC 60947-5-5 CSA C22.2 No 14 JIS C8201-1
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2506022EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant

Material

Material	polycarbonate

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Device short name	XALK
Control station application	emergency stop function emergency switching off function
Number of cut-out	5 cut-outs
Colour of base of enclosure	light grey (RAL 7035)
Colour of cover	yellow (RAL 1021)
Assembly style	for customer assembly
Number of horizontal rows	1
Number of vertical rows	5
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Mounting of block	rear mounting front mounting
Main group	5 cut-outs
Group of product	standard yellow
Customizable	no
Customizable	0
Compatibility code	XALK
Protective treatment	TH
Overvoltage category	class II conforming to IEC 60536
Nema degree of protection	NEMA 13 NEMA 4X
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.300 cm
Package 1 width	8.100 cm
Package 1 length	19.900 cm
Package 1 weight	302.000 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.0307010225
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0402558691
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0018820384
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.0589141922
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.1317531223
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI2506022EN
Take-back	No
Warranty (in months)	18
