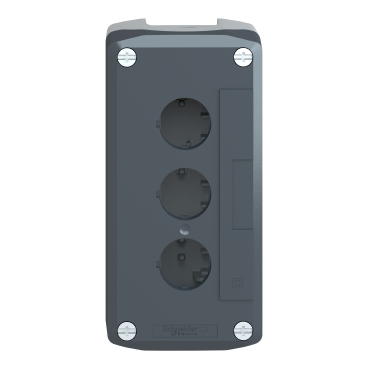

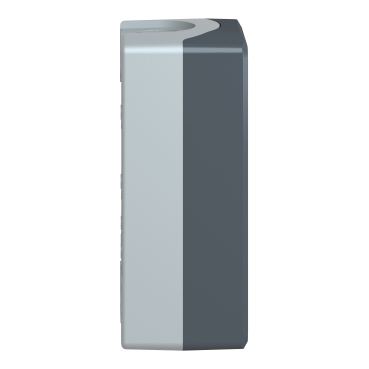

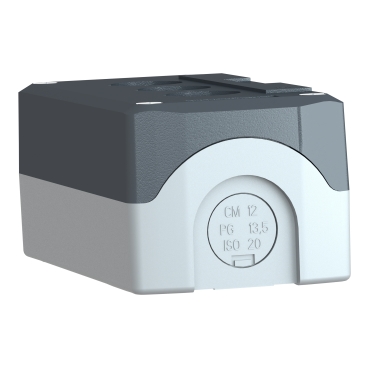

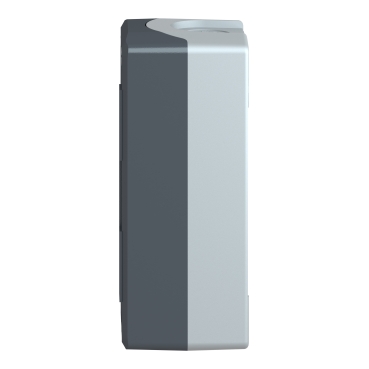

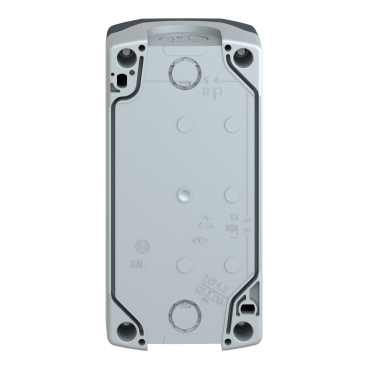

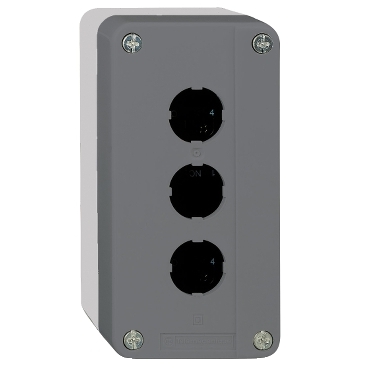

Harmony XALD XALK Empty control station plastic, dark grey lid, light grey base, 3 cut out
Item Number: XALD03
Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | PCE | 3389110114812 | - |
Specifications
Design
| Range of product | Harmony XALD |
|---|---|
| Product or component type | empty control station |
| Product destination | for XB5 Ø 22 mm control and signalling units |
Physical
| Cable entry |
|
|---|---|
| Ip degree of protection |
|
| Net weight | 0.238 kg |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -40...70 °C |
| Ik degree of protection | IK03 conforming to IEC 62262 |
| Standards |
|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2506022EN |
| Eu rohs directive | Compliant |
Material
| Material | polycarbonate |
|---|
Others
| Legacy weee scope | Out |
|---|---|
| Package 1 bare product quantity | 1 |
| Package 2 bare product quantity | 30 |
| Package 3 bare product quantity | 240 |
| Average percentage of recycled plastic content | 0 % |
| At least in Europe | |
| Weee label | No |
| Device short name | XALD |
| Number of cut-out | 3 cut-outs |
| Colour of base of enclosure | light grey (RAL 7035) |
| Colour of cover | dark grey (RAL 7016) |
| Assembly style | for customer assembly |
| Number of horizontal rows | 1 |
| Number of vertical rows | 3 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mounting of block |
|
| Electrical composition code |
|
| Main group | 3 cut-outs |
| Group of product | standard grey |
| Customizable | no |
| Customizable | 1 |
| Compatibility code | XALD |
| Gcr bridge | XALD03CUST01 |
| Protective treatment | TH |
| Overvoltage category | class II conforming to IEC 60536 |
| Nema degree of protection |
|
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 7.500 cm |
| Package 1 width | 13.700 cm |
| Package 1 length | 7.000 cm |
| Package 1 weight | 219.000 g |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 30 |
| Package 2 height | 30.000 cm |
| Package 2 width | 30.000 cm |
| Package 2 length | 40.000 cm |
| Package 2 weight | 7.034 kg |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 240 |
| Package 3 height | 75.000 cm |
| Package 3 width | 60.000 cm |
| Package 3 length | 80.000 cm |
| Package 3 weight | 68.924 kg |
| Green premium status for reporting | Green Premium product |
| Total lifecycle carbon footprint | 2 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [a1 to a3] | 1.5490603954 |
| Carbon footprint of the manufacturing phase [a1 to a3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [a4] | 0.0307080027 |
| Carbon footprint of the distribution phase [a4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [a5] | 0.0014356575 |
| Carbon footprint of the installation phase [a5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 0 |
| Carbon footprint of the use phase [b2, b3, b4, b6] | 0 kg CO2 eq. |
| Sustainable packaging | Yes |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0.0449409543 |
| Carbon footprint of the end-of-life phase [c1 to c4] | 0 kg CO2 eq. |
| Take-back | No |
| Product contributes to saved and avoided emissions | No |
| Removable battery | N/A |
| Total lifecycle carbon footprint | 1.62614501 |
| Average percentage of recycled metal content | 0 % |
| Packaging made with recycled cardboard | Yes |
| Packaging without single use plastic | Yes |
| End of life manual availability | ENVEOLI2506022EN |
| Take-back | No |
| Warranty (in months) | 18 |
