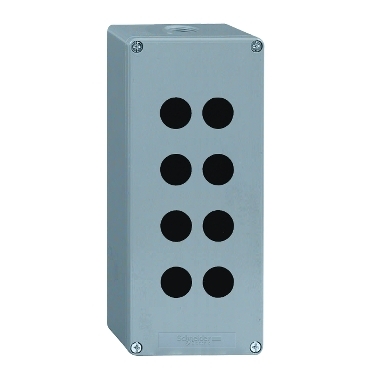

Harmony XAP XB2 SL Die-cast empty control station XAPM, Ø 22, zinc alloy, 8 openings

Home ProductsIndustrialHarmonyDie-cast empty control station

Harmony XAP XB2 SL Die-cast empty control station XAPM, Ø 22, zinc alloy, 8 openings

Item Number: XAPM4508H29

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XAP

Product or component type

die-cast empty control station

Product destination

for Ø 22 mm control and signalling units

Warranty

18 months

Physical

Cable entry

1 hole without blanking plug for ISO 429248 cable gland, clamping capacity: 25-25 mm

Device mounting

flush

Ip degree of protection

IP65 conforming to IEC 60529

Net weight

1.37 kg

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2111017EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

zinc alloy

Others

Legacy weee scope

Out

Weee label

No

At least in Europe

Package 1 bare product quantity

1

Device short name

XAPM

Product front plate size

80 x 220 mm

Usable depth

74.5 mm

Number of cut-out

8 cut-outs

Colour of base of enclosure

blue

Colour of cover

blue

Number of vertical rows

2

Compatibility code

XAPM

Protective treatment

TC

Overvoltage category

  • class I conforming to IEC 60536
  • class I conforming to NF C 20-030

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.8 cm

Package 1 width

13.2 cm

Package 1 length

25.2 cm

Package 1 weight

1.534 kg

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
