Harmony eXLhoist Connector plug female standard, cable 3m for ZARB12H
Item Number: ZARC12
Colour ()
- 1 PCE 0
Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | PCE | 3606480662379 | - |
Specifications
Design
| Range of product | Harmony eXLhoist |
|---|---|
| Product compatibility | control station ZARB |
Physical
| Pin number | 62 |
|---|---|
| Net weight | 3.6 kg |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -40...60 °C |
| Ip degree of protection | IP65 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Material
| Material | PE (polyethylene) |
|---|
Others
| Legacy weee scope | Out |
|---|---|
| At least in Europe | |
| Average percentage of recycled plastic content | 0 % |
| Package 2 bare product quantity | 2 |
| Package 1 bare product quantity | 1 |
| Warranty duration(in months) bmecat | 18 |
| Weee label | No |
| Accessory / separate part type | pre-wired connector |
| Accessory / separate part category | connection accessory |
| Total number of wires | 48 |
| Cable composition | 8 x 2.8 mm² + 40 x 1.5 mm² |
| Cable length | 3 m |
| Nema degree of protection | NEMA 4 |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 6.000 cm |
| Package 1 width | 29.000 cm |
| Package 1 length | 39.000 cm |
| Package 1 weight | 3.030 kg |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 2 |
| Package 2 height | 30.000 cm |
| Package 2 width | 30.000 cm |
| Package 2 length | 40.000 cm |
| Package 2 weight | 6.418 kg |
| Sustainable packaging | No |
| Take-back | No |
| Product contributes to saved and avoided emissions | No |
| Removable battery | N/A |
| Average percentage of recycled metal content | 0 % |
| Scip number | 6e438e59-42d1-4633-bfe2-cb5ef607659b |
| China rohs label | 7 |
| Take-back | No |
| Warranty (in months) | 18 |
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Installation Instruction
-
Operating Manuals
-
Quick Start Guide
-
Declaration of Conformity
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
-
Firmware
-
Software - Release

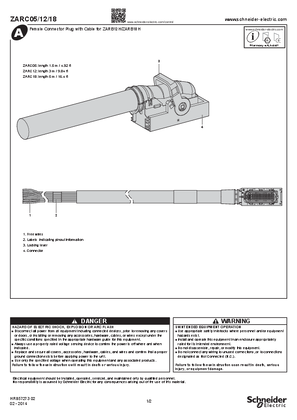

ZARC05/12/18 Female Connector Plug with Cable for ZARB12H../ZARB18H.., Instruction Sheet
