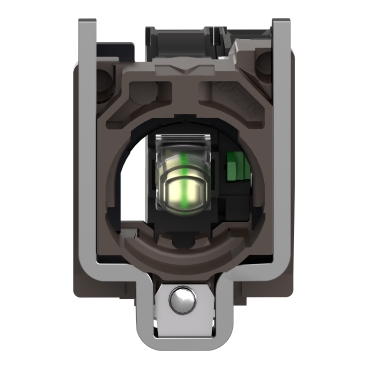

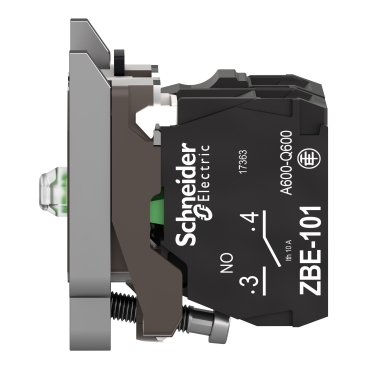

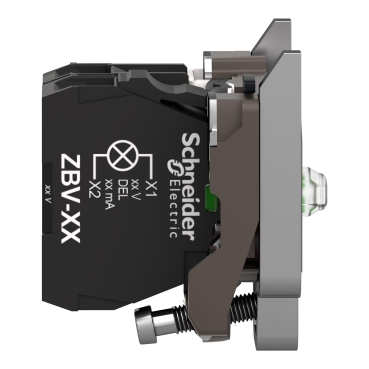

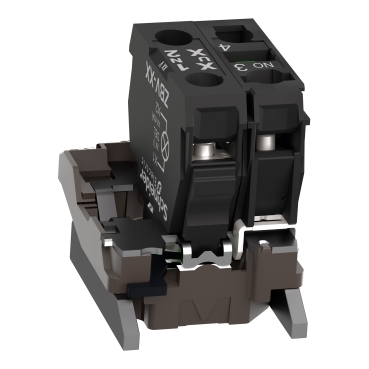

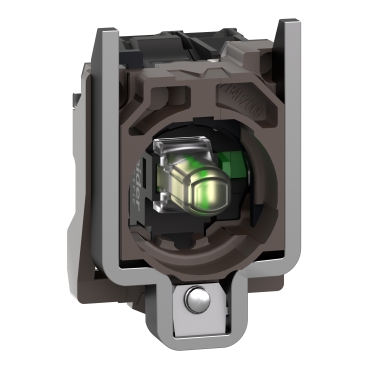

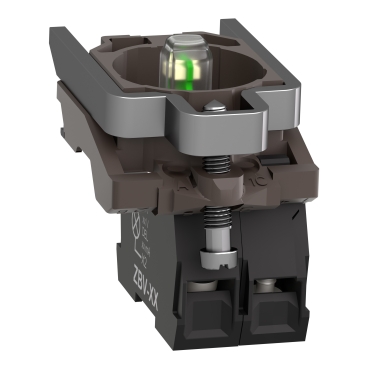

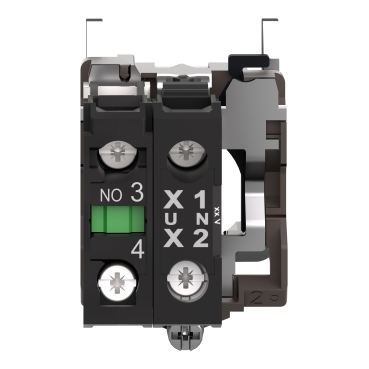

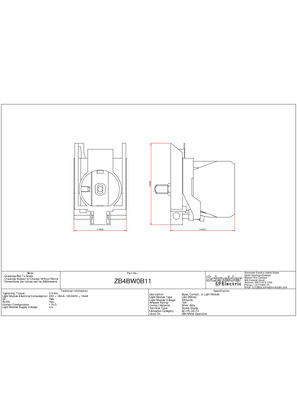

Harmony XB4 Complete body/contact assembly and light block metal, universal LED, body/fixing collar, 1NO, 24V AC DC
Item Number: ZB4BW0B11
Datasheet
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Sale per indivisible quantity
Connections - terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Net weight
Mechanical durability
[ie] rated operational current
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability
- 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation
Ambient air temperature for storage
Ambient air temperature for operation
Standards
- IEC 60947-5-5
- IEC 60947-1
- CSA C22.2 No 14
- IEC 60947-5-1
- UL 508
- IEC 60947-5-4
- JIS C8201-5-1
- JIS C8201-1
Product certifications
- DNV
- UL listed
- LROS (Lloyds register of shipping)
- BV
- CSA
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Material
Contacts material
Others
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Device short name
Fixing collar material
Head type
Contacts type and composition
Contact operation
Light source
Bulb base
Light block supply
Light source colour
[us] rated supply voltage
[us] rated supply voltage
Cad overall width
Cad overall height
Terminals description iso n°1
Contacts usage
Positive opening
Operating travel
- 2.6 mm (NO changing electrical state)
- 4.3 mm (total travel)
Operating force
Operating torque
Tightening torque
Shape of screw head
- cross compatible with Philips no 1 screwdriver
- cross compatible with pozidriv No 1 screwdriver
- slotted compatible with flat Ø 4 mm screwdriver
- slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection
[ith] conventional free air thermal current
[ui] rated insulation voltage
[uimp] rated impulse withstand voltage
Electrical reliability
- λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
- λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
Signalling type
Supply voltage limits
- 19.2...30 V DC
- 21.6...26.4 V AC
Current consumption
Service life
Surge withstand
Customizable
Customizable
Compatibility code
Protective treatment
Electrical shock protection class
Vibration resistance
Shock resistance
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
- 6 kV on contact (on metal parts) conforming to IEC 61000-2-6
- 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6
Electromagnetic emission
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Sustainable packaging
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
