Harmony Electromechanical Relays Clip-in legends for RPM/RXM relays

Home ProductsIndustrialHarmonyClip-in legends

Harmony Electromechanical Relays Clip-in legends for RPM/RXM relays

Item Number: RXZL520

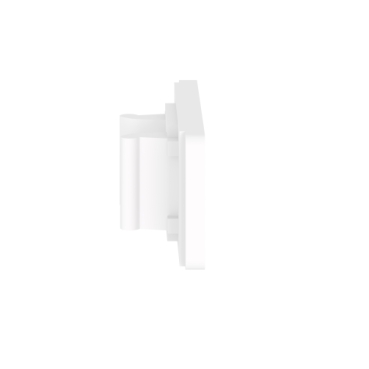

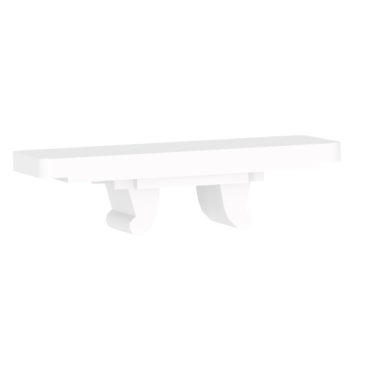

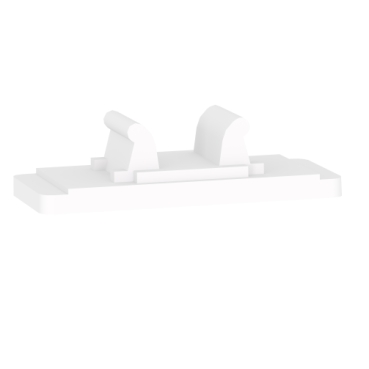

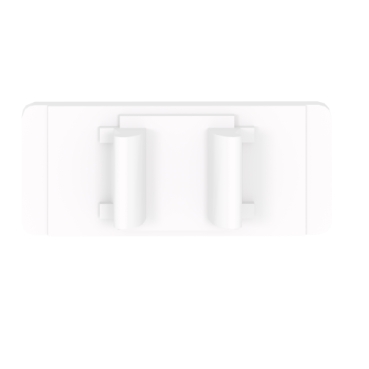

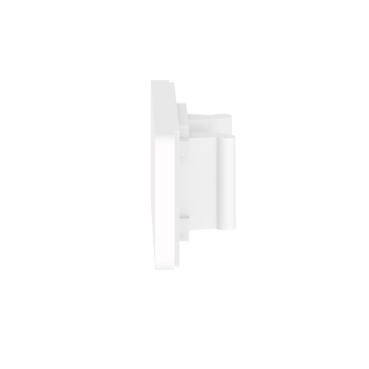

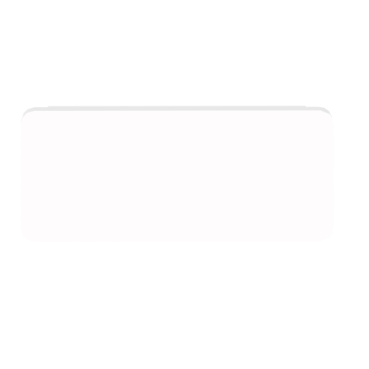

"This Harmony RXZ clip-in legend set is used for identification of relay." "It is supplied with blank plate for custom engraving to support any desired marking and can be easily assemble with relay socket via clip-in mounting." "It is compatible with plug-in relay RPM, RXM, RUM." "Blank legend allows customization of any markings as required." "It can be matched with any relay socket from RPM, RXM, RUM ranges."

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

legend

Product compatibility

  • plug-in relay RUM
  • plug-in relay RPM
  • plug-in relay RXM
  • plug-in relay RXG

Warranty

18 months

Physical

Sale per indivisible quantity

10

Net weight

0.08 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1511021EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

accessories

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

At least in Europe

Weee label

No

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

40

Accessory / separate part category

marking accessory

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.400 cm

Package 1 width

7.800 cm

Package 1 length

18.000 cm

Package 1 weight

14.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

3.500 cm

Package 2 width

8.000 cm

Package 2 length

18.500 cm

Package 2 weight

167.000 g

Unit type of package 3

S01

Number of units in package 3

40

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

912.000 g

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
