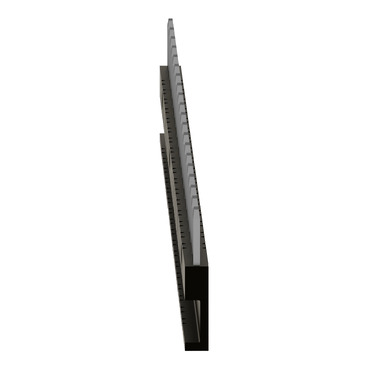

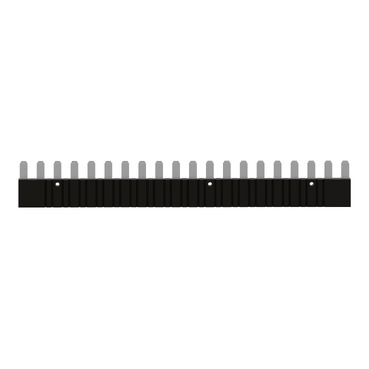

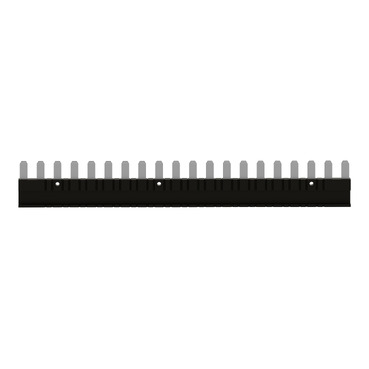

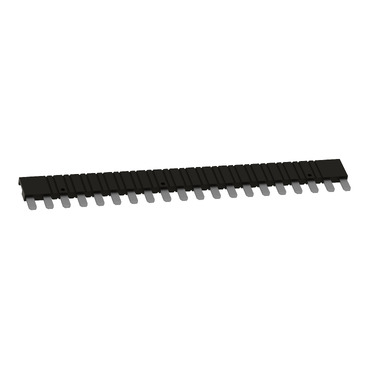

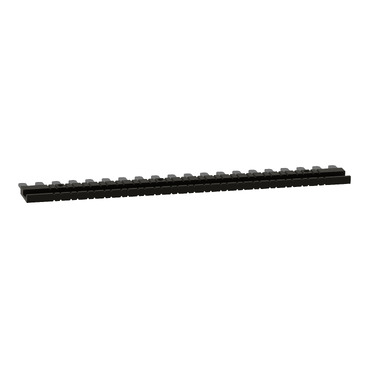

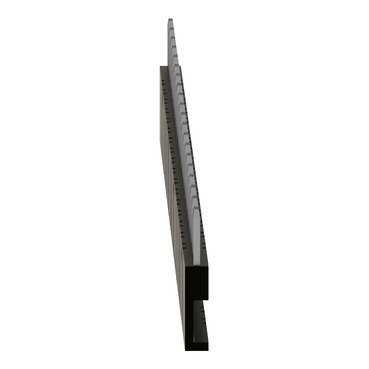

Harmony Electromechanical Relays Bus jumper Connection Accessory, 20 poles, for RSLZ, SSLZ push-in sockets

Item Number: RSLZ2

1 PCE 0

"This Harmony RSL bus jumper with 20-poles is compatible with socket RSLZ and socket SSLZ." "Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists." "It can be matched with any relay socket from RSLZ and SSLZ ranges." "It is a well designed product to help reducing your installation time."

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480078132	-
10	BAG	13606480078139	-

Specifications

Design

Range of product	Harmony Solid State Relays Harmony Electromechanical Relays
Product or component type	bus jumper
Product compatibility	RSLZ - socket SSLZ - socket

Physical

Sale per indivisible quantity	10
Ip degree of protection	IP00
Net weight	0.003 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2502015EN
Eu rohs directive	Compliant

Others

Legacy weee scope	Out
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Accessory / separate part category	connection accessory
Accessory / separate part destination	slim interface relay socket
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.3 cm
Package 1 width	1.7 cm
Package 1 length	12.2 cm
Package 1 weight	8 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	2 cm
Package 2 width	6 cm
Package 2 length	13 cm
Package 2 weight	80 g
Unit type of package 3	S03
Number of units in package 3	1000
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	8.497 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0971934472
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0010321645
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0001170136
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0012844057
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.099627031
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
