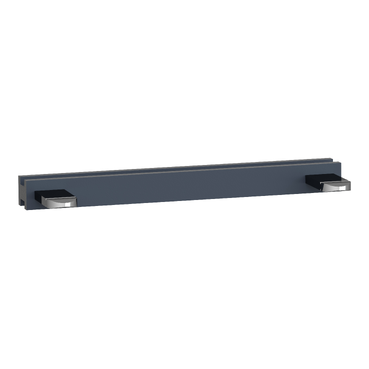

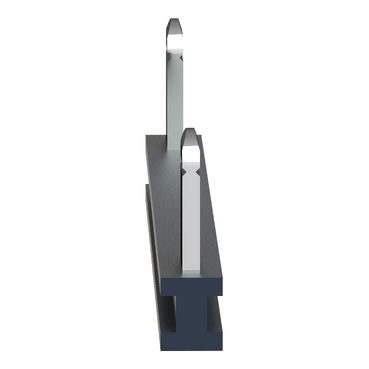

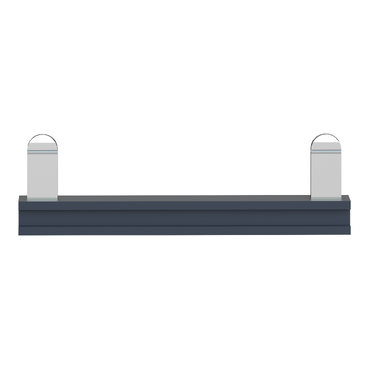

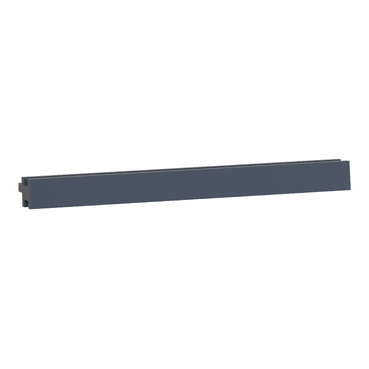

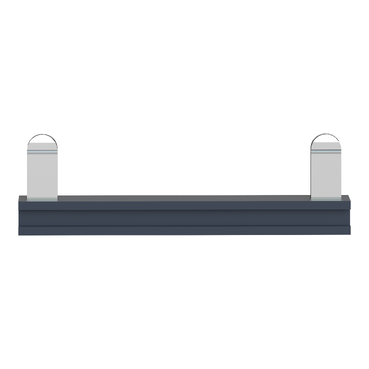

Harmony Electromechanical Relays Bus jumper 2 poles, for all screw sockets with separate contacts

Home ProductsIndustrialHarmonyBus jumper

Harmony Electromechanical Relays Bus jumper 2 poles, for all screw sockets with separate contacts

Item Number: RXZS2

"This Harmony RXZ bus jumper with separate contacts is compatible with socket RSX." "Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists." "It can be matched with any relay socket from RXZ range." "It is a well designed product to help reducing your installation time."

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

bus jumper

Product compatibility

socket RXZ

Warranty

18 months

Physical

Sale per indivisible quantity

10

Net weight

0.005 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1511021EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

1500

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Accessory / separate part designation

bus jumper

[ith] conventional free air thermal current

5 A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.200 cm

Package 1 width

0.400 cm

Package 1 length

2.500 cm

Package 1 weight

0.400 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

0.300 cm

Package 2 width

3.500 cm

Package 2 length

7.000 cm

Package 2 weight

5.000 g

Unit type of package 3

S01

Number of units in package 3

1500

Package 3 height

15.000 cm

Package 3 width

15.000 cm

Package 3 length

40.000 cm

Package 3 weight

1.039 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
