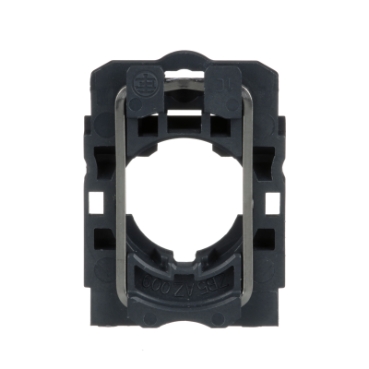

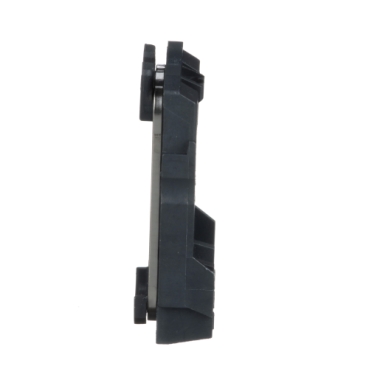

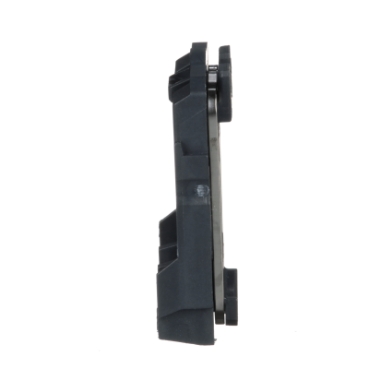

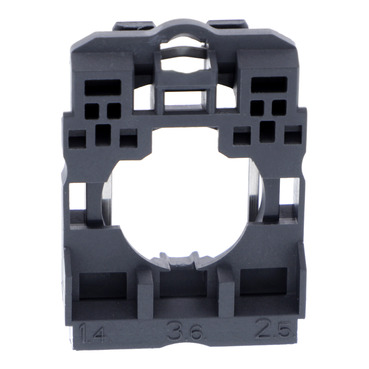

Harmony XB5 Body/fixing collar for electrical block plastic
Item Number: ZB5AZ009
This Harmony XB5, body/fixing collar allows to connect together XB5 heads with contact or light blocks. It is made of plastic. The base unit to start assembling your Harmony XB5 heads and bodies.
