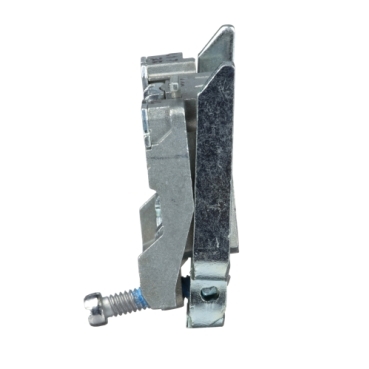

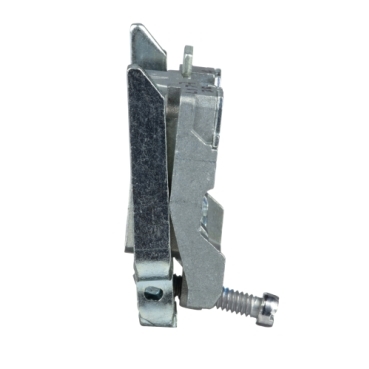

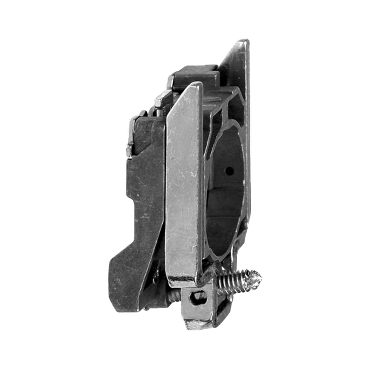

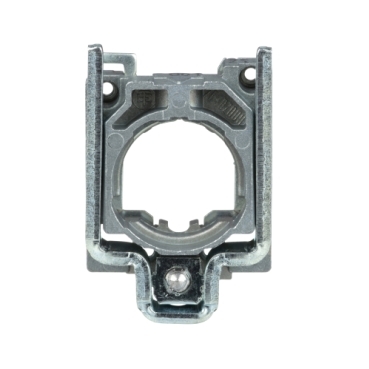

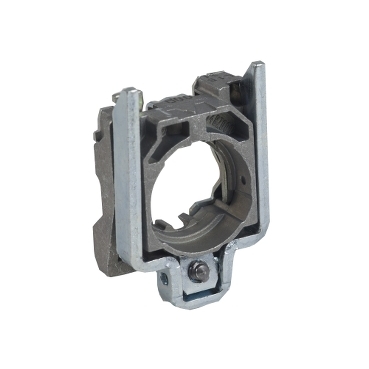

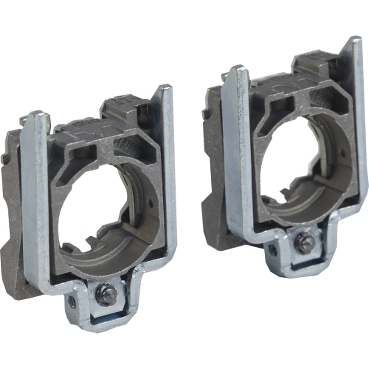

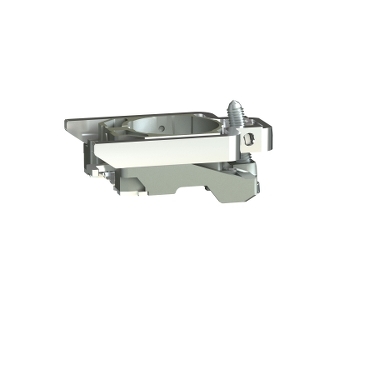

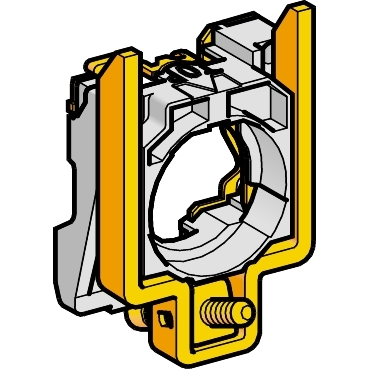

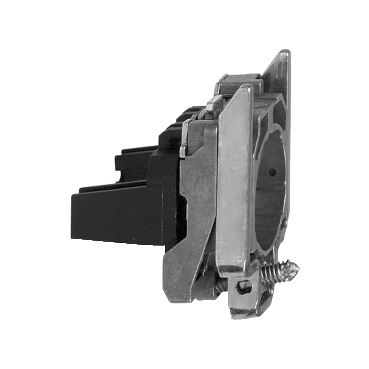

Harmony XB4, Body/fixing collar for electrical block, metal

Home ProductsIndustrialHarmonyBody/fixing collar for electrical block, metal

Harmony XB4, Body/fixing collar for electrical block, metal

Item Number: ZB4BZ009

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XB4

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Device presentation

basic element

Quantity per set

set of 10

Net weight

0.006 kg

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1808008EN

Circularity profile

ENVEOLI1808008EN

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

metal

Others

Package 1 bare product quantity

1

Accessory / separate part designation

fixing collar

Accessory / separate part type

body fixing collar

Accessory / separate part category

mounting and fixing accessories

Head type

standard

Accessory / separate part destination

electrical block

Customizable

no

Customizable

0

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.0 cm

Package 1 width

3.0 cm

Package 1 length

4.6 cm

Package 1 weight

37.0 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

8.8 cm

Package 2 width

7 cm

Package 2 length

7 cm

Package 2 weight

397 g

Unit type of package 3

S02

Number of units in package 3

150

Package 3 height

15 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

6.273 kg
Show all specifications
