Harmony Blank legend plate set of 10

Home ProductsIndustrialHarmonyBlank legend plate

Harmony Blank legend plate set of 10

Item Number: KZ77

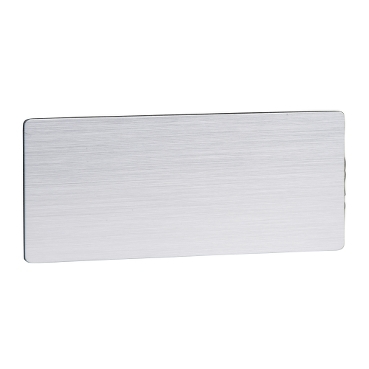

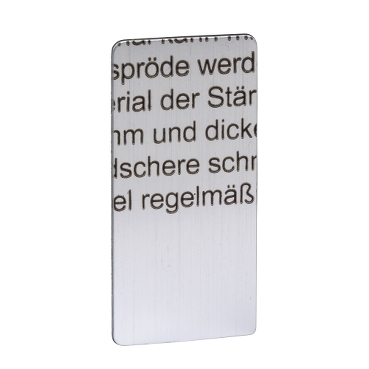

TeSys Vario marking accessory, for TeSys Vario switch-disconnectors. Blank legend plate for engraving, to be used with KZ16 legend holders. Sold in lots of 10 units.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

legend plate

Product compatibility

KZ16

Warranty

18 months

Physical

Quantity per set

set of 10

Range compatibility

TeSys KZ legend plate

Marking

unmarked

Height

27 mm

Width

57 mm

Net weight

10 g

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2211006EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

In

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Device short name

KZ

Accessory / separate part category

marking accessories

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.5 cm

Package 1 width

10.0 cm

Package 1 length

10.0 cm

Package 1 weight

2.0 g

Unit type of package 2

BAG

Number of units in package 2

10

Package 2 height

0.5 cm

Package 2 width

10.0 cm

Package 2 length

10.0 cm

Package 2 weight

20.0 g

Unit type of package 3

S01

Number of units in package 3

160

Package 3 height

15.0 cm

Package 3 width

15.0 cm

Package 3 length

40.0 cm

Package 3 weight

517.0 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

29 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0631683460336542

Carbon footprint of the manufacturing phase [a1 to a3]

0.1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0019486676772601536

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0008767746976567308

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

28.971796700100345

Carbon footprint of the use phase [b2, b3, b4, b6]

29 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.02651844302716203

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

29.06430893153608

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

65661eb0-9ea7-4d52-b0a4-16b981f28f63

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
