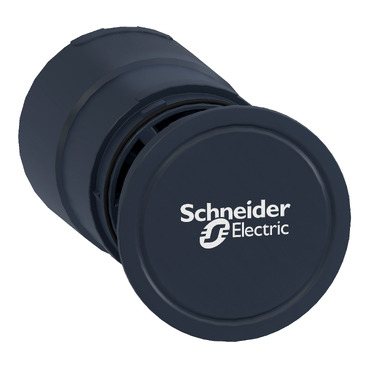

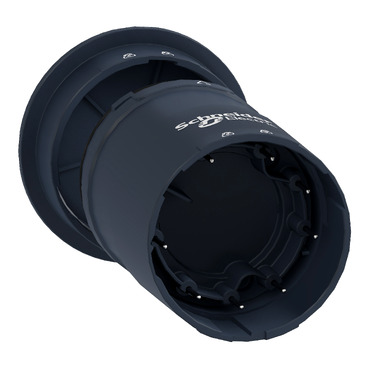

Harmony XVU Base unit with top cover for modular tower lights black, 60mm, 24V AC DC

Home ProductsIndustrialHarmonyBase unit with top cover for modular tower lights

Harmony XVU Base unit with top cover for modular tower lights black, 60mm, 24V AC DC

Item Number: XVUC21B

This base unit with top cover is designed to be fitted with indicator bank to create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It allows clear display of the status of your machines. It complies with CSA, UL, RoHS, CE standards. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Physical

Fixing mode

direct or tube fixing

Length

77 mm

Net weight

0.11 kg

Product certifications

  • CE
  • UL
  • CSA

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

IP65

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • PBT (polybutylene terephthalate) V-0 conforming to UL 94
  • ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
  • PC (polycarbonate) V-0 conforming to UL 94

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Beacon or indicator bank unit type

base unit

Mounting diameter

60 mm

Component name

XVU

Housing colour

black

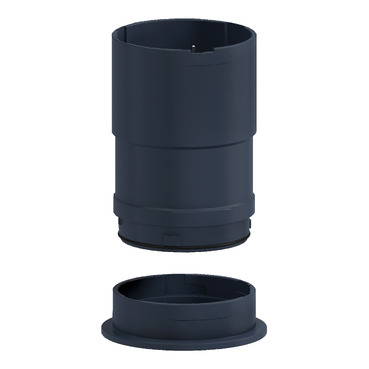

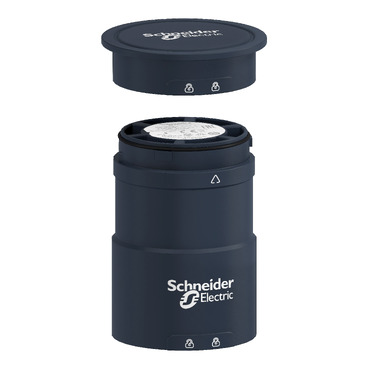

Kit composition

  • base unit
  • cover

Assembly style

customer assembly, up to 5 units

[us] rated supply voltage

24 V AC/DC - 15...10 %

Current consumption

<= 400 mA

Vibration resistance

2 gn

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.1 cm

Package 1 width

26.8 cm

Package 1 length

9.0 cm

Package 1 weight

284.0 g

Unit type of package 2

S04

Number of units in package 2

24

Package 2 height

30.0 cm

Package 2 width

40.0 cm

Package 2 length

60.0 cm

Package 2 weight

27.3 kg

Unit type of package 3

PAL

Number of units in package 3

96

Package 3 height

60.0 cm

Package 3 width

80.0 cm

Package 3 length

70.0 cm

Package 3 weight

31.04 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.9 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.7230092294483794

Carbon footprint of the manufacturing phase [a1 to a3]

0.7 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.014383987980253274

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.11376904915217857

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.0958617729126422

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.9470240394934535

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Handout

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
XVUC21B_CAD
ZIP

XVUC21B_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 147 KB
Base unit module 24V AC/DC - black
ZIP

Base unit module 24V AC/DC - black

VERSION

1.0

DATE

11 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB
Catalog of Harmony XVU modular tower light, dia. 60
ZIP

Catalog of Harmony XVU modular tower light, dia. 60

VERSION

8.0

DATE

06 Aug 2024

REVISION

8.0

DOWNLOAD (ZIP) 5.5 MB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 300 KB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet
ZIP

XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 2.8 MB
XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet
ZIP

XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet

VERSION

2.0

DATE

21 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 4.1 MB
XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet
ZIP

XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 12 MB
XVU... Modular tower lights (Ø 60), Instrution Sheet
ZIP

XVU... Modular tower lights (Ø 60), Instrution Sheet

VERSION

2.0

DATE

14 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 10.1 MB
Automated solution for effective people flow management!
ZIP

Automated solution for effective people flow management!

VERSION

1.0

DATE

07 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.4 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 106 KB
Technical Illustration - Wiring
ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 238.2 KB

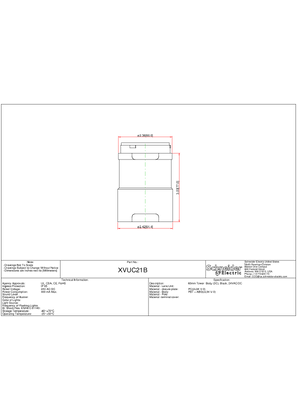

XVUC21B_2D_Drwng_PDF
