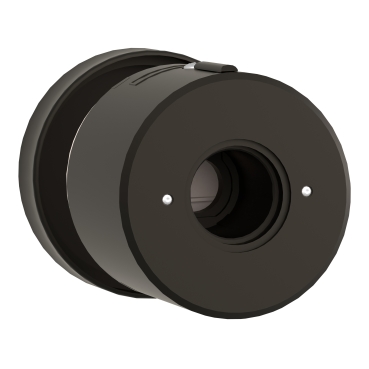

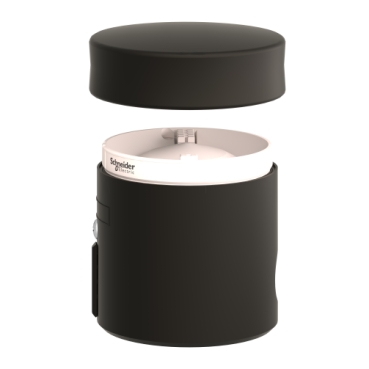

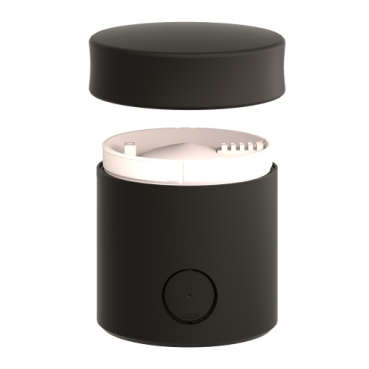

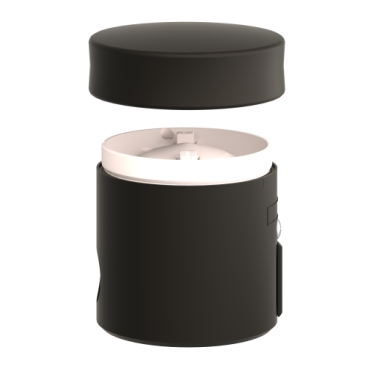

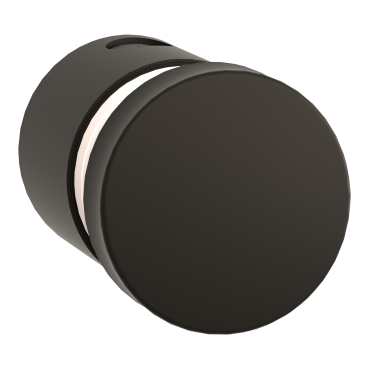

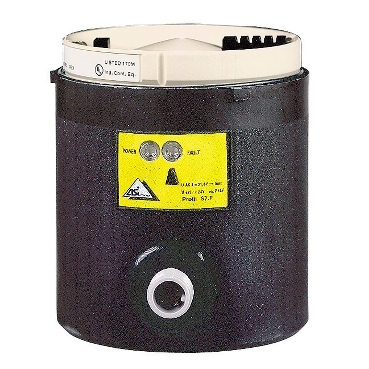

Harmony XVB Base unit with cover side cable entry, plastic, black, 70mm, AS-Interface connection

Home ProductsIndustrialHarmonyBase unit with cover

Harmony XVB Base unit with cover side cable entry, plastic, black, 70mm, AS-Interface connection

Item Number: XVBC21A

This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

base unit with cover

Warranty

18 months

Physical

Range compatibility

AS-Interface cabling system

Cable entry

side entry

Net weight

0.19 kg

Product certifications

  • AS-Interface No 25701
  • CSA

Standards

IEC 60947-5-1

Ambient air temperature for storage

-20...70 °C

Ambient air temperature for operation

-10...50 °C

Ip degree of protection

IP65 conforming to IEC 60529

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • glass reinforced polyamide: base unit
  • polycarbonate: cover unit

Others

Legacy weee scope

Out

At least in Europe

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Weee label

No

Component name

XVBC

Mounting diameter

70 mm

[us] rated supply voltage

  • external: 19.2...30 V
  • AS-Interface line: 24...31.6 V

Current consumption

  • 250 mA under load via AS-Interface line
  • 30 mA under load external
  • 30 mA no load

Actuator sensor interface profile [as-i]

S.7.F

Electrical connection

1 connector M12 for AS-Interface line

Assembly style

customer assembly, up to 5 units

[ui] rated insulation voltage

250 V conforming to IEC 60947-1

[uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Terminals description iso n°1

  • (COM-5)PW
  • (COM-1)PW
  • (COM-4)PW
  • (COM-3)PW
  • (GND)GROUND
  • (COM-2)PW

Protective treatment

TC

Shock resistance

25 gn conforming to IEC 60068-2-27

Vibration resistance

5 gn conforming to IEC 60068-2-6

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 4X conforming to UL 508 (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.2 cm

Package 1 width

7.8 cm

Package 1 length

7.8 cm

Package 1 weight

238.0 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

9.079 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

2.5266222203

Carbon footprint of the manufacturing phase [a1 to a3]

3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0831093576

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0695183482

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.4818448036

Carbon footprint of the end-of-life phase [c1 to c4]

0.5 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

3.1610947297

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

124e2d7a-5b1e-45ca-b93c-220dd91b55b6

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Technical illustration

  • Specification Guide

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Ø 70 mm base unit + cover - 3D CAD
ZIP

Ø 70 mm base unit + cover - 3D CAD

VERSION

1.0

DATE

12 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.2 MB
XVB - 70 mm diameter indicator bank PEP
ZIP

XVB - 70 mm diameter indicator bank PEP

VERSION

1.1

DATE

30 Jul 2025

REVISION

1.1

DOWNLOAD (ZIP) 1.3 MB
XVBL... /C..., XVDL.../C... Beacons and indicator banks Ø 70 mm Universal (EN)
ZIP

XVBL... /C..., XVDL.../C... Beacons and indicator banks Ø 70 mm Universal (EN)

VERSION

4.0

DATE

21 Aug 2024

REVISION

4.0

DOWNLOAD (ZIP) 1.1 MB

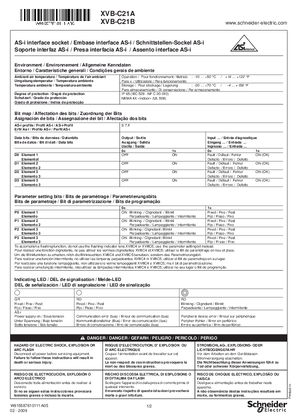

XVBC21A / XVBC21B AS-Interface socket for illuminated banks, Instruction Sheet
