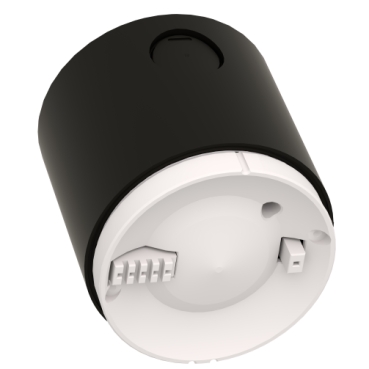

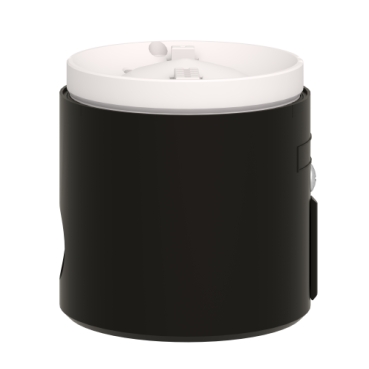

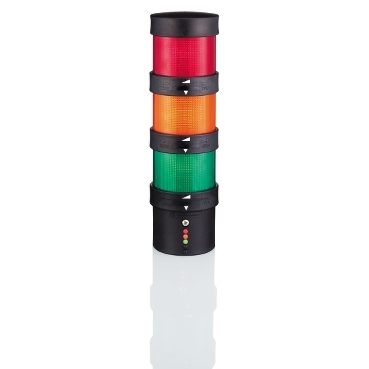

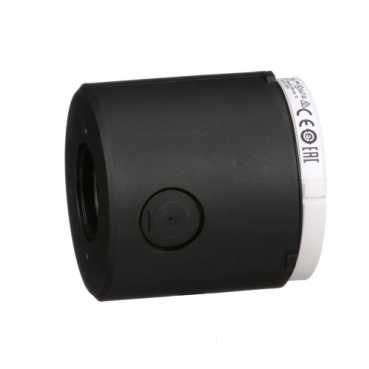

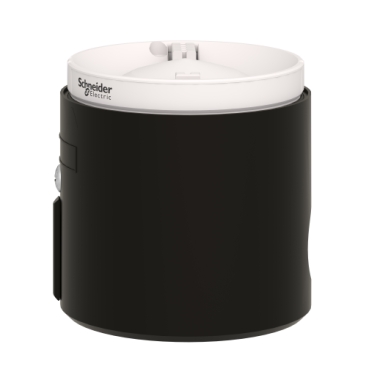

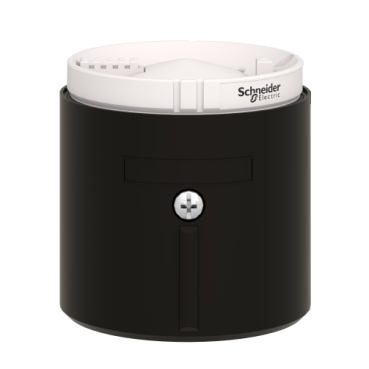

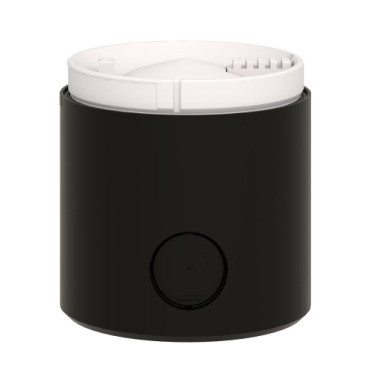

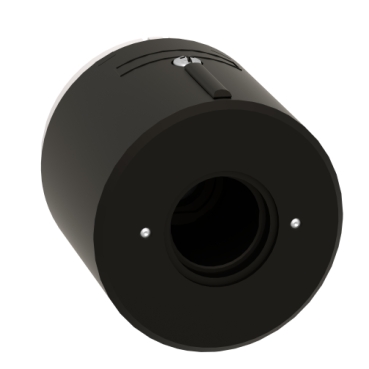

Harmony XVB Base unit for modular tower lights plastic, black, 70mm, bottom or side cable entry

Home ProductsIndustrialHarmonyBase unit for modular tower lights

Harmony XVB Base unit for modular tower lights plastic, black, 70mm, bottom or side cable entry

Item Number: XVBC07

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVB Universal

Product or component type

base unit

Product destination

banks without flash discharge tube unit

Warranty

18 months

Physical

Fixing mode

direct or tube fixing

Cable entry

bottom or side entry

Net weight

0.16 kg

Product certifications

  • CCC
  • EAC
  • CSA C22-2 No 14
  • UL 508

Standards

IEC 60947-5-1

Ambient air temperature for storage

-40...70 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP070907EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

glass reinforced polyamide: base unit

Others

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Legacy weee scope

Out

At least in Europe

Weee label

No

Component name

XVBC

Mounting diameter

70 mm

Electrical connection

1 connector for standard input

Assembly style

customer assembly, up to 5 units

Terminals description iso n°1

  • (COM-2)PW
  • (COM-3)PW
  • (COM-1)PW
  • (GND)GROUND
  • (COM-4)PW
  • (COM-5)PW

Protective treatment

TC

Nema degree of protection

Type 4X conforming to UL (indoor)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10 cm

Package 1 width

12 cm

Package 1 length

10 cm

Package 1 weight

170 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

7 kg

Unit type of package 3

P06

Number of units in package 3

144

Package 3 height

45 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

36.5 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.6985695599

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0558718371

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.046735024

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.3239292797

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

2.1251057007

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

124e2d7a-5b1e-45ca-b93c-220dd91b55b6

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
