Harmony XVU Audible unit black, Ø60, buzzer, 24V AC/DC

Home ProductsIndustrialHarmonyAudible unit

Harmony XVU Audible unit black, Ø60, buzzer, 24V AC/DC

Item Number: XVUC9S

This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony XVU

Product or component type

modular tower light

Physical

Length

58 mm

Net weight

0.077 kg

Product certifications

  • UL
  • CE
  • CSA

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-25...50 °C

Ip degree of protection

IP54

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308032EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

  • PBT (polybutylene terephthalate) V-0 conforming to UL 94
  • ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
  • PC (polycarbonate) V-0 conforming to UL 94

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Beacon or indicator bank unit type

buzzer unit

Mounting diameter

60 mm

Component name

XVU

Housing colour

black

Signalling type

continuous or intermittent buzzer

Localisation on device

top

Assembly style

customer assembly

[us] rated supply voltage

24 V AC/DC

Maximum power dissipation in w

1.7 W

Acoustic level

85 dB at 1 m

Sound frequency

2635 Hz

Current consumption

<= 70 mA

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9 cm

Package 1 width

13.3 cm

Package 1 length

9.1 cm

Package 1 weight

172 g

Unit type of package 2

S03

Number of units in package 2

24

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

4.99 kg

Unit type of package 3

PAL

Number of units in package 3

192

Package 3 height

70 cm

Package 3 width

80 cm

Package 3 length

60 cm

Package 3 weight

39.68 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

18 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.5061064606138655

Carbon footprint of the manufacturing phase [a1 to a3]

0.5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.010068791586177291

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.079638334406525

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

17.255921803652964

Carbon footprint of the use phase [b2, b3, b4, b6]

17 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.06710324103884953

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

17.91883863129838

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

c06fce4f-aea2-46a5-aadb-0b38d1efbe3f

End of life manual availability

ENVEOLI2308032EN

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
CAD file (on TraceParts) for XVUC9S: XVU BUZZER UNIT, BLACK
ZIP

CAD file (on TraceParts) for XVUC9S: XVU BUZZER UNIT, BLACK

VERSION

1.0

DATE

17 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 441.3 KB
XVUC9S_CAD
ZIP

XVUC9S_CAD

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 179.2 KB
Catalog of Harmony XVU modular tower light, dia. 60
ZIP

Catalog of Harmony XVU modular tower light, dia. 60

VERSION

8.0

DATE

06 Aug 2024

REVISION

8.0

DOWNLOAD (ZIP) 5.5 MB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 300 KB
XVU Tower Light
ZIP

XVU Tower Light

VERSION

1.0

DATE

06 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet
ZIP

XVUZ01., XVUZ02., XVUZ05 Mounting accessories for Modular tower lights, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 2.8 MB
XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet
ZIP

XVUZ06 Flexible mounting element for use on horizontal or vertical support, Instruction Sheet

VERSION

2.0

DATE

21 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 4.1 MB
XVUC9S. Buzzer, adjustable unit, Instruction Sheet
ZIP

XVUC9S. Buzzer, adjustable unit, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 2.2 MB
XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet
ZIP

XVUC29P Multi-LED unit, Pulse signal - XVUC9VP Sound unit, Pulse signal, Instruction Sheet

VERSION

3.0

DATE

21 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 12 MB
XVU... Modular tower lights (Ø 60), Instrution Sheet
ZIP

XVU... Modular tower lights (Ø 60), Instrution Sheet

VERSION

2.0

DATE

14 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 10.1 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 188.9 KB
Technical Illustration - Wiring
ZIP

Technical Illustration - Wiring

VERSION

1.0

DATE

11 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 238.2 KB

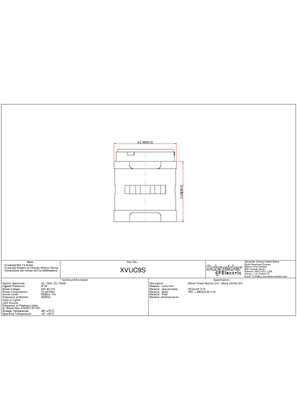

XVUC9S_2D_Drwng_PDF
