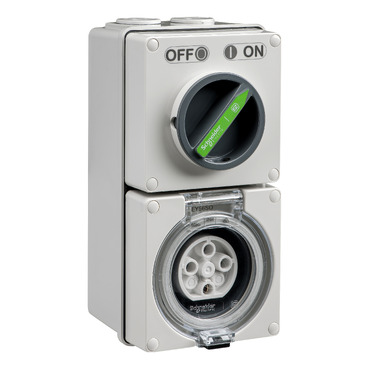

Easy56, Switched Socket, 4 Pin, 20A, 500V

Easy56, Switched Socket, 4 Pin, 20A, 500V

Item Number: EY56C420

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height203 mm

Depth icon

Depth101 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

switch and socket-outlet

Colour

  • body: grey (RAL 7035)
  • rotary handle: dark grey

Market segment

  • utility
  • industry
  • small commercial

Physical

Control type

rotary knob

Mounting mode

surface mounted

[in] rated current

20 A

Pin number

4 pins

[ue] rated operational voltage

500 V

Protection type

without protection

Connections - terminals

screw terminals

Net weight

0.82 kg

Height

203 mm

Width

101 mm

Depth

101 mm

Standards

  • AS/NZS 3133
  • AS/NZS 3123

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Contacts material

pins: brass

Others

Package 1 bare product quantity

1

Product name

Easy56

Device short name

EY56C420

Plug, socket category

low voltage

Poles description

3P + E

Rotary handle padlocking

2 padlocks 8-8 mm

Network type

AC

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Shape of pin

tubular

Network frequency

50 Hz

Cable cross section

1...16 mm²

Cable entry number

  • 2 x M25
  • 1 x M32

Targeted country

  • Australia
  • New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.4 cm

Package 1 width

10.8 cm

Package 1 length

21.0 cm

Package 1 weight

946.0 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

Removable battery

N/A
