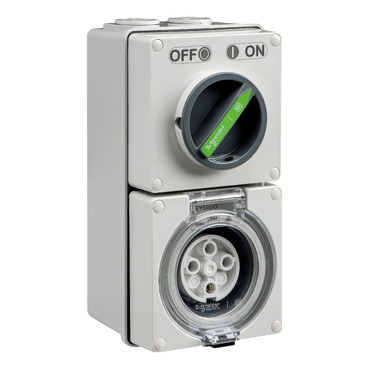

Easy56 Switched Socket 4 Pin, 10A, 500V

Home ProductsIndustrialEasy56™Switched Socket

Easy56 Switched Socket 4 Pin, 10A, 500V

Item Number: EY56C410

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width101 mm

Height icon

Height203 mm

Depth icon

Depth101 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

switch and socket-outlet

Colour

  • body: grey (RAL 7035)
  • rotary handle: dark grey

Market segment

  • utility
  • small commercial
  • industry

Physical

Control type

rotary knob

Mounting mode

surface mounted

[in] rated current

10 A

Pin number

4 pins

[ue] rated operational voltage

500 V

Protection type

without protection

Connections - terminals

screw terminals

Net weight

0.82 kg

Height

203 mm

Width

101 mm

Depth

101 mm

Standards

  • AS/NZS 3133
  • AS/NZS 3123

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2511024EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Contacts material

pins: brass

Others

Package 1 bare product quantity

1

Outside of Europe

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

Warranty duration(in months) bmecat

18

Weee label

N/A

Weee applicability

Finished product

Product name

Easy56

Device short name

EY56C410

Plug, socket category

low voltage

Poles description

3P + E

Rotary handle padlocking

2 padlocks 8-8 mm

Network type

AC

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Shape of pin

tubular

Network frequency

50 Hz

Cable cross section

1...16 mm²

Cable entry number

  • 2 x M25
  • 1 x M32

Targeted country

  • New Zealand
  • Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.5 cm

Package 1 width

10.4 cm

Package 1 length

22.7 cm

Package 1 weight

945.5 g

Total lifecycle carbon footprint

28 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

9.368571609670143

Carbon footprint of the manufacturing phase [a1 to a3]

9 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.2185902151000589

Carbon footprint of the distribution phase [a4]

0.2 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.13167253283589833

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

16.93097502582249

Carbon footprint of the use phase [b2, b3, b4, b6]

17 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.9075202686095214

Carbon footprint of the end-of-life phase [c1 to c4]

0.9 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

27.55732965203811

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

2

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
