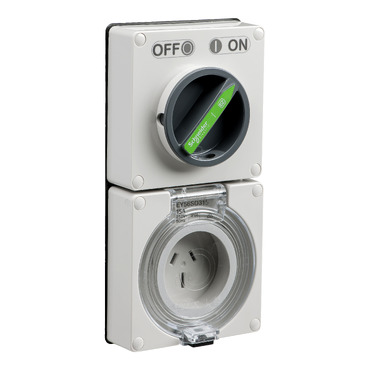

Easy56, Switched Socket, 3 Pin, 15A, 250V- Less Enclosure

Easy56, Switched Socket, 3 Pin, 15A, 250V- Less Enclosure

Item Number: EY56C315LE

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height203 mm

Depth icon

Depth65 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

switch and socket-outlet

Colour

body: grey (RAL 7035)|rotary handle: dark grey

Market segment

utility|industry|small commercial

Physical

Control type

rotary knob

Mounting mode

surface mounted

[in] rated current

15 A

Pin number

3 pins

[ue] rated operational voltage

250 V

Protection type

without protection

Connections - terminals

screw terminals

Net weight

0.68 kg

Height

203 mm

Width

101 mm

Depth

65 mm

Standards

AS/NZS 3133|AS/NZS 3112

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate

Contacts material

pins: phosphor bronze

Others

Commercial status history

SESA301466 | Wed Sep 27 02:54:00 EDT 2023 | From Import Local | From 14 to 19

Package 1 bare product quantity

1

Product name

Easy56

Device short name

EY56C315LE

Plug, socket category

low voltage

Poles description

1P + N + E

Rotary handle padlocking

2 padlocks 8-8 mm

Network type

AC

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Shape of pin

flat

Network frequency

50 Hz

Cable cross section

1.5...6 mm²

Targeted country

Australia|New Zealand

Quality labels

RCM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.0 cm

Package 1 width

11.0 cm

Package 1 length

1.0 cm

Package 1 weight

399.0 g
