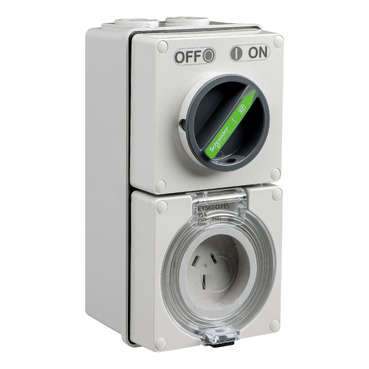

Easy56 Switched Socket 3 Pin, 15A, 250V

Item Number: EY56C315

1 PCE 0

Where To Buy

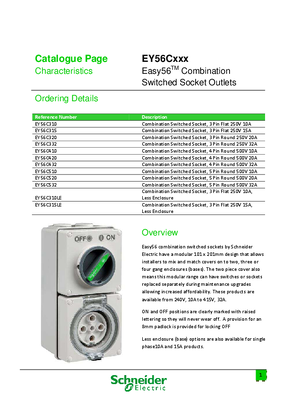

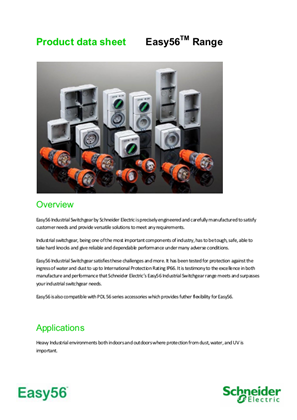

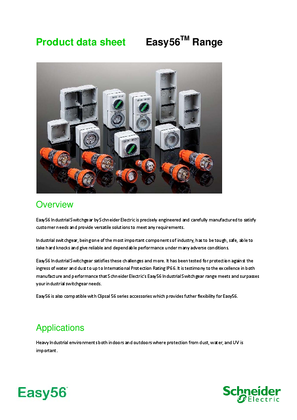

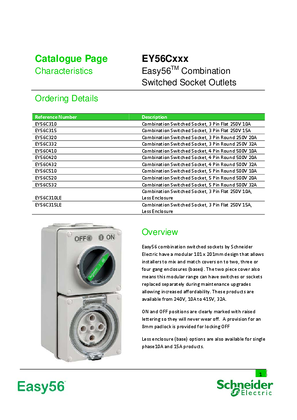

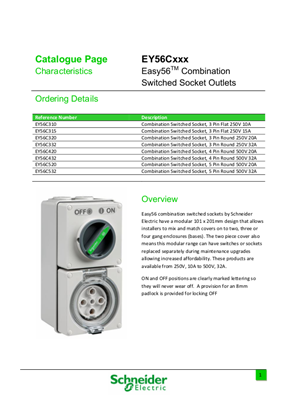

Datasheet

Download

Product Dimensions

Width101 mm

Height203 mm

Depth101 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554782702	-

Specifications

Design

Product or component type	switch and socket-outlet
Colour	body: grey (RAL 7035) rotary handle: dark grey
Market segment	industry small commercial utility

Physical

Control type	rotary knob
Mounting mode	surface mounted
[in] rated current	15 A
Pin number	3 pins
[ue] rated operational voltage	250 V
Protection type	without protection
Connections - terminals	screw terminals
Net weight	0.82 kg
Height	203 mm
Width	101 mm
Depth	101 mm
Standards	AS/NZS 3112 AS/NZS 3133
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Ambient air temperature for storage	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate
Contacts material	pins: phosphor bronze

Others

Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	Easy56
Device short name	EY56C315
Plug, socket category	low voltage
Poles description	1P + N + E
Rotary handle padlocking	2 padlocks 8-8 mm
Network type	AC
Outlet standard deviation	Australian/New Zealand
Plug, socket, control station shape	straight
Shape of pin	flat
Network frequency	50 Hz
Cable cross section	1.5...6 mm²
Cable entry number	2 x M25 1 x M32
Targeted country	New Zealand Australia
Quality labels	RCM
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.4 cm
Package 1 width	10.4 cm
Package 1 length	20.7 cm
Package 1 weight	861 g
Unit type of package 2	CAR
Number of units in package 2	12
Package 2 height	21.8 cm
Package 2 width	35.3 cm
Package 2 length	45 cm
Package 2 weight	10532 g
Unit type of package 3	PAL
Number of units in package 3	240
Package 3 height	100 cm
Package 3 width	80 cm
Package 3 length	120 cm
Package 3 weight	224640 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	27 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	8.531295775701738
Carbon footprint of the manufacturing phase [a1 to a3]	9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.19905465383516738
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.11990486596690479
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	16.93097502582249
Carbon footprint of the use phase [b2, b3, b4, b6]	17 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.8264145439162327
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	26.607644865242534
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
