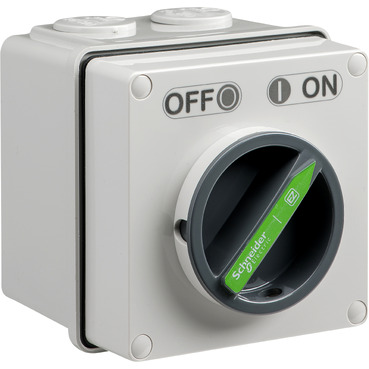

Easy56 Switch 1P, 20A, 250V

Item Number: EY56SW120

1 PCE 0

Where To Buy

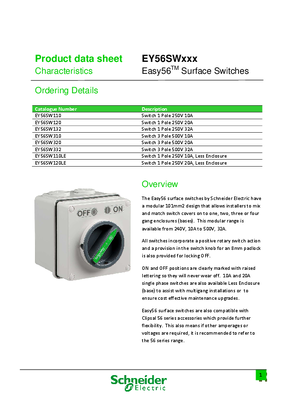

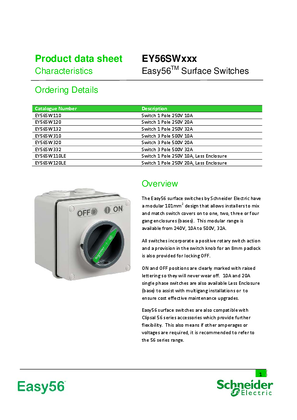

Datasheet

Download

Product Dimensions

Width101 mm

Height101 mm

Depth101 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554782603	-

Specifications

Design

Product or component type	switch
Colour	body: grey (RAL 7035) rotary handle: dark grey
Market segment	small commercial industry utility

Physical

Control type	rotary knob
[ue] rated operational voltage	250 V AC 50 Hz
[ie] rated operational current	20 A (AC-21A) at 250 V AC 20 A (AC-23A) at 250 V AC
Connections - terminals	screw terminals cable(s) 1-16 mm² rigid or stranded
Height	101 mm
Width	101 mm
Depth	101 mm
Net weight	0.471 kg
Standards	AS/NZS 3133
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN_V1-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
	Outside of Europe
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	Easy56
Device short name	EY56SW120
Poles description	1P
Rotary handle padlocking	2 padlocks 8-8 mm
[uimp] rated impulse withstand voltage	2.5 kV conforming to IEC 60947-3 2.5 kV conforming to AS/NZS 3133
[ithe] conventional enclosed thermal current	20 A
Making capacity	200 A at 250 V AC-21A 200 A at 250 V AC-23A
[icm] rated short-circuit making capacity	1 kA at 250 V AC-21A 1 kA at 250 V AC-23A
[icw] rated short-time withstand current	1.5 kA at 250 V duration: 1 s
Breaking capacity	0.2 kA at 250 V (AC-21A) 0.2 kA at 250 V (AC-23A)
Suitability for isolation	yes
Targeted country	New Zealand Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.2 cm
Package 1 width	10.4 cm
Package 1 length	10.6 cm
Package 1 weight	495.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.6466898415986
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.148420258632945
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.09085903848449677
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.2134114374549891
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.518580576171032
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
