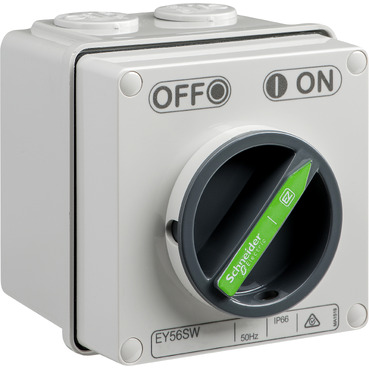

Easy56 Switch 1P, 10A, 250V

Home ProductsIndustrialEasy56™Switch

Easy56 Switch 1P, 10A, 250V

Item Number: EY56SW110

1 PCE 0

Datasheet

Product Dimensions

Width101 mm

Height101 mm

Depth101 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554782580	-

Specifications

Design

Product or component type	switch
Colour	body: grey (RAL 7035) rotary handle: dark grey
Market segment	utility industry small commercial

Physical

Control type	rotary knob
[ue] rated operational voltage	250 V AC 50 Hz
[ie] rated operational current	10 A
Connections - terminals	screw terminals cable(s) 1.5-6 mm² rigid or stranded
Height	101 mm
Width	101 mm
Depth	101 mm
Net weight	0.471 kg
Standards	AS/NZS 3133
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN_V1-EN
Eu rohs directive	Compliant By Exemption

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	Easy56
Device short name	EY56SW110
Poles description	1P
Rotary handle padlocking	2 padlocks 8-8 mm
[ithe] conventional enclosed thermal current	10 A
Targeted country	New Zealand Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.2 cm
Package 1 width	10.4 cm
Package 1 length	10.6 cm
Package 1 weight	495.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.6466898415986
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.148420258632945
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.09085903848449677
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.2134114374549891
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.518580576171032
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Other technical guide
Environmental Disclosure
Installation Instruction
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Easy56TM Surface Switches

Easy56TM Surface Switches

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 205.6 KB

Easy56 Surface Switches by Schneider Electric - Catalog

Easy56 Surface Switches by Schneider Electric - Catalog

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 383.6 KB

Easy56 TM Range Industrial Switchgear - Catalog

Easy56 TM Range Industrial Switchgear - Catalog

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 377.3 KB

Product Data Sheet - Easy56 Range

Product Data Sheet - Easy56 Range

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 191.8 KB

Product Data Sheet - Easy56 - EY56SW Surface Switches

Product Data Sheet - Easy56 - EY56SW Surface Switches

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 176.1 KB

Easy56, Switches - Product Environmental Profile

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 367.6 KB

Easy56- Switch-Instruction Sheet (EN)

Easy56- Switch-Instruction Sheet (EN)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

Schneider Electric, 56SW triple pole switches, Certificate, RCM, Global Mark Pty LTD

Schneider Electric, 56SW triple pole switches, Certificate, RCM, Global Mark Pty LTD

VERSION

1.2

DATE

11 Dec 2024

REVISION

1.2

DOWNLOAD (ZIP) 498.2 KB

CA_GMA-510615-EA-Rev00_56SWxxx series Size 1 with the 30USM switch mech

CA_GMA-510615-EA-Rev00_56SWxxx series Size 1 with the 30USM switch mech

VERSION

1.0

DATE

15 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 262.5 KB

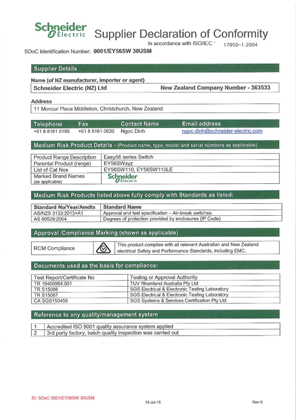

RCM Declaration of conformity
