Specifications
Design

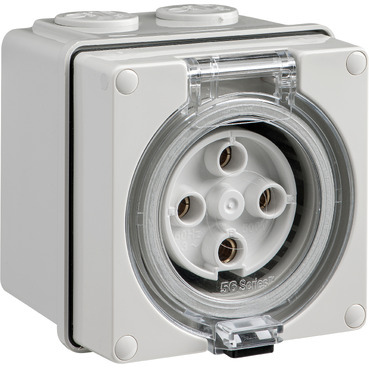

| Product or component type | socket-outlet |
|---|---|
| Market segment |
|
Physical
| Mounting mode | surface mounted |
|---|---|
| [in] rated current | 32 A |
| Pin number | 4 pins |
| [ue] rated operational voltage | 500 V |
| Connections - terminals | screw terminals 4-16 mm² rigid or stranded cable |
| Wire stripping length | 16 mm |
| Net weight | 0.471 kg |
| Height | 101 mm |
| Width | 101 mm |
| Depth | 101 mm |
| Standards | AS/NZS 3123 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Ambient air temperature for storage | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2511024EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | polycarbonate: cover |
|---|---|
| Contacts material | pins: brass |
