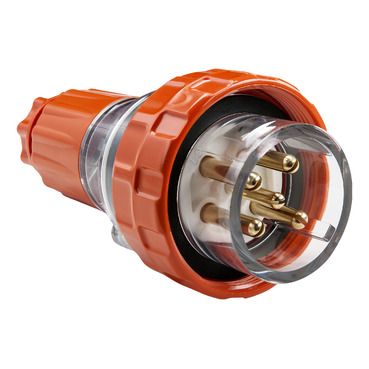

Easy56, Plug, 5 Pin, 10A, 500V

Item Number: EY56P510

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height78 mm

Depth icon

Depth152 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

plug

Colour

plug: orange (RAL 2004)|body: clear

Market segment

industry|utility|small commercial

Physical

Pin number

5 pins

[in] rated current

10 A

[ue] rated operational voltage

500 V

Connections - terminals

screw terminals

Cable outer diameter

7...16 mm

Wire stripping length

10...35 mm

Cable entry

cable gland

Net weight

0.298 kg

Height

78 mm

Width

78 mm

Depth

152 mm

Standards

AS/NZS 3123

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: housing

Contacts material

pins: brass

Others

Package 1 bare product quantity

1

Product name

Easy56

Device short name

EY56P510

Plug, socket category

low voltage

Poles description

3P + N + E

Shape of pin

tubular

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Network type

AC

Network frequency

50 Hz

Cable cross section

1...4 mm²

Targeted country

Australia|New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.2 cm

Package 1 width

9.5 cm

Package 1 length

17.1 cm

Package 1 weight

362.3 g
