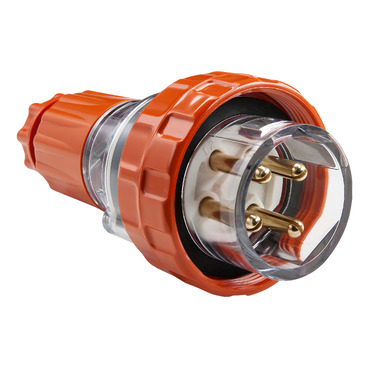

Easy56 Plug 4 Pin, 20A, 500V

Item Number: EY56P420

1 PCE 0

Where To Buy

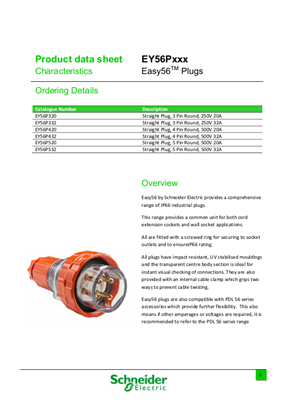

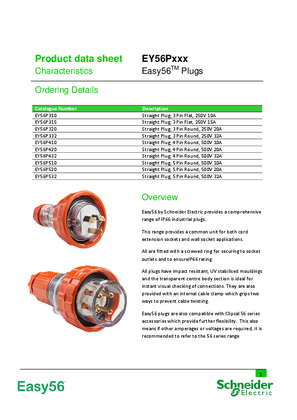

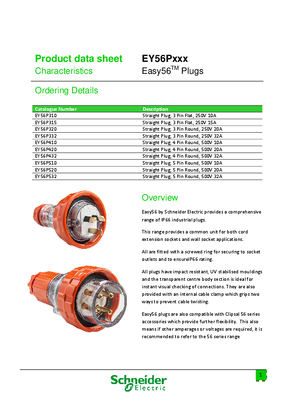

Datasheet

Download

Product Dimensions

Width78 mm

Height78 mm

Depth152 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554782467	-

Specifications

Design

Product or component type	plug
Colour	plug: orange (RAL 2004) body: clear
Market segment	utility small commercial industry

Physical

Pin number	4 pins
[in] rated current	20 A
[ue] rated operational voltage	500 V
Connections - terminals	screw terminals
Cable outer diameter	7...16 mm
Wire stripping length	10...35 mm
Cable entry	cable gland
Net weight	0.298 kg
Height	78 mm
Width	78 mm
Depth	152 mm
Standards	AS/NZS 3123
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Ambient air temperature for storage	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP121020EN_V2
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate: housing
Contacts material	pins: brass

Others

Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	Easy56
Device short name	EY56P420
Plug, socket category	low voltage
Poles description	3P + E
Shape of pin	tubular
Outlet standard deviation	Australian/New Zealand
Plug, socket, control station shape	straight
Network type	AC
Network frequency	50 Hz
Cable cross section	1...4 mm²
Targeted country	New Zealand Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.2 cm
Package 1 width	9.4 cm
Package 1 length	17.6 cm
Package 1 weight	286 g
Unit type of package 2	BB1
Number of units in package 2	20
Package 2 height	218 cm
Package 2 width	360 cm
Package 2 length	442 cm
Package 2 weight	7.548 kg
Total lifecycle carbon footprint	7 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.4804939691247068
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.10291894585138295
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0010643569026006128
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.008641331557165
Carbon footprint of the use phase [b2, b3, b4, b6]	5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6117068820688767
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	7.204825485504731
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	2
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
