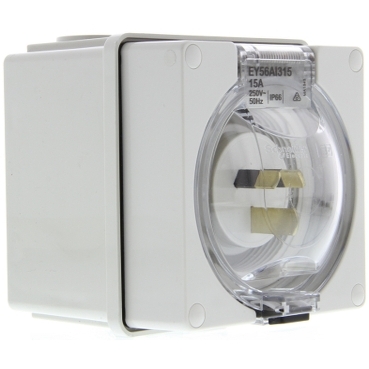

Easy56 Appliance Inlet 15A, 250V

Item Number: EY56AI315

1 PCE 0

Where To Buy

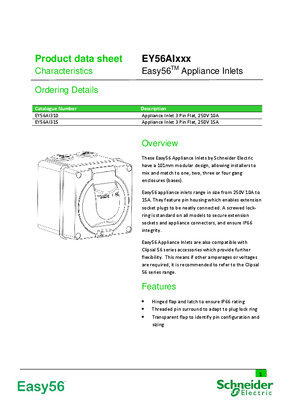

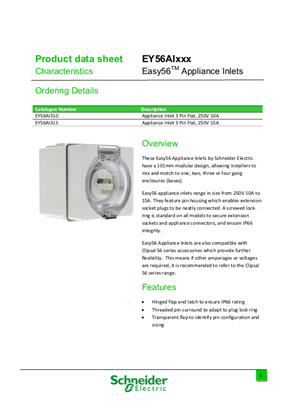

Datasheet

Download

Product Dimensions

Width101 mm

Height101 mm

Depth102 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554783075	-
24	CAR	19311554783072	-

Specifications

Design

Product or component type	appliance inlet
Product compatibility	connector Easy56 EY56CSC315
Colour	grey (RAL 7035)
Market segment	small commercial utility industry

Physical

Pin number	3 pins
Mounting mode	surface mounted
[in] rated current	15 A
[ue] rated operational voltage	250 V
Connections - terminals	screw terminals
Cable stiffness	rigid or stranded
Wire stripping length	10 mm
Net weight	0.471 kg
Height	101 mm
Width	101 mm
Depth	102 mm
Standards	AS/NZS 60320.1
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Ambient air temperature for storage	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1508011_V2
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate: cover
Contacts material	pins: brass

Others

Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Accessory / separate part category	connection accessory
Plug, socket category	low voltage
Poles description	1P + N + E
Network type	AC
Outlet standard deviation	Australian/New Zealand
Plug, socket, control station shape	straight
Network frequency	50 Hz
Cable cross section	1.5...6 mm²
Targeted country	Australia New Zealand
Quality labels	RCM
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	11.2 cm
Package 1 width	10.4 cm
Package 1 length	10.6 cm
Package 1 weight	490 g
Unit type of package 2	CAR
Number of units in package 2	24
Package 2 height	21.8 cm
Package 2 width	35.3 cm
Package 2 length	45 cm
Package 2 weight	11960.84 g
Unit type of package 3	PAL
Number of units in package 3	480
Package 3 height	100 cm
Package 3 width	80 cm
Package 3 length	120 cm
Package 3 weight	253216.8 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.002582560874948411
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00006320251754023938
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000285425505571605
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.00002133425000000001
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00008745377631035902
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0027656220841931495
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
