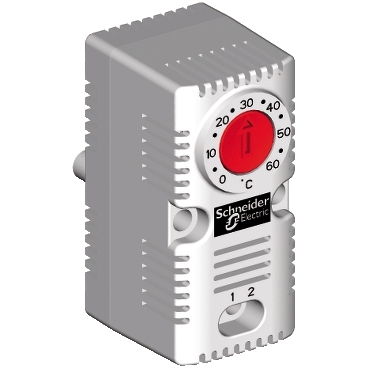

ClimaSys, Simple thermostat, 250V, range of temperature 0…60°C - NC - °C

Home ProductsIndustrialClimaSysSimple thermostat

ClimaSys, Simple thermostat, 250V, range of temperature 0…60°C - NC - °C

Item Number: NSYCCOTHC

ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NC contact type. 1 heating function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate PanelSet upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Widthexternal: 33 mm

Height icon

Heightexternal: 68 mm

Depth icon

Depthexternal : 44 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

simple thermostat

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Sensor type

bimetal

Contact resistance

10 mOhm

Mounting mode

clipped

Height

external: 68 mm

Width

external: 33 mm

Depth

external : 44 mm

Net weight

40 g

Ambient air temperature for operation

-20...80 °C

Ip degree of protection

IP20

Product certifications

UL

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2103012EN

Circularity profile

N/A

Material

Material

PC

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

3600

Product name

ClimaSys CC

Temperature setting range

0...60 °C

Information displayed

temperature in °C

Input voltage

250 V

Contacts type and composition

NC

Service life in cycles

100000 cycles

Maximum switching capacity

2 A 120...250 V AC inductive pf: 0.6 |10 A 250 V AC resistive|15 A 120 V AC resistive|30 W DC

Electrical connection

4 terminals, clamping capacity: 2.5 mm²

Mounting location

Spacial upright|35 mm DIN rail|cross rails|on mounting plate

Hysteresis

7 K +/- 0.4K

Number of outputs

1 heating function

Flame retardance

self-extinguishing conforming to UL94 (material V0)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.826 cm

Package 1 width

6.35 cm

Package 1 length

8.128 cm

Package 1 weight

63.504 g

Unit type of package 2

PAM

Number of units in package 2

3600

Package 2 height

120 cm

Package 2 width

100 cm

Package 2 length

160 cm

Package 2 weight

290 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

ClimaSys CC - Sim.Thermostat (NC Heat) Red (ºC) - 3D CAD
ZIP

ClimaSys CC - Sim.Thermostat (NC Heat) Red (ºC) - 3D CAD

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 10.1 MB
CAD drawing - Customized ClimaSys NSYCCOTHC(F) and NSYCCOTHO(F)
ZIP

CAD drawing - Customized ClimaSys NSYCCOTHC(F) and NSYCCOTHO(F)

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

DOWNLOAD (ZIP) 322.4 KB
Universal Enclosures - Quick Selection Guide (2024 EN)
ZIP

Universal Enclosures - Quick Selection Guide (2024 EN)

VERSION

2.0

DATE

04 Jul 2024

REVISION

2.0

DOWNLOAD (ZIP) 15.4 MB
Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide
ZIP

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.8 MB
Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures
ZIP

Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures

VERSION

2.1

DATE

07 Mar 2023

REVISION

2.1

DOWNLOAD (ZIP) 4.4 MB
PEP-ClimaSys CC- Simple Thermostat
ZIP

PEP-ClimaSys CC- Simple Thermostat

VERSION

1.0

DATE

29 Jan 2024

REVISION

1.0

DOWNLOAD (ZIP) 354.9 KB
ProClima - Web Software User Guide (English)
ZIP

ProClima - Web Software User Guide (English)

VERSION

1.0

DATE

12 Jan 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.4 MB
TECHNICAL INSTRUCTION ELECTROMECHANICAL THERMOSTAT - Instruction sheet
ZIP

TECHNICAL INSTRUCTION ELECTROMECHANICAL THERMOSTAT - Instruction sheet

VERSION

2.1

DATE

21 Dec 2022

REVISION

2.1

DOWNLOAD (ZIP) 5.6 MB
Control Panel - Technical Guide - How to reduce damage to components through effective thermal management
ZIP

Control Panel - Technical Guide - How to reduce damage to components through effective thermal management

VERSION

3.0

DATE

18 Feb 2022

REVISION

3.0

DOWNLOAD (ZIP) 9 MB

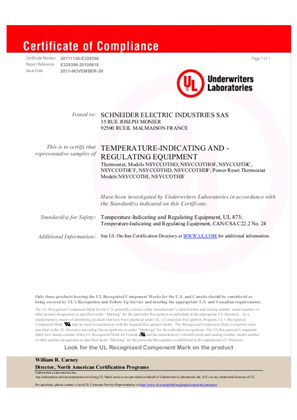

UL_Certifcate_of_Compliance_Climasys_Mechanical_thermal_control_devices
