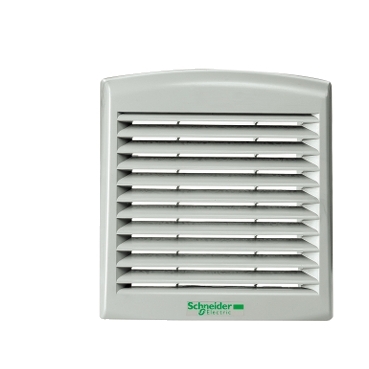

ClimaSys Outlet grille plastic, cut out 291x291mm, ext. dim 336x316mm, IP54

Item Number: NSYCAG291LPF

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Widthexternal: 316 mm

Heightexternal: 336 mm

Depthexternal : 18 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480151552	-
6	CV	23606480151556	-

Specifications

Design

Range	ClimaSys
Product or component type	outlet grille
Colour	external part: grey (RAL 7035)

Physical

Range compatibility	Prisma Prisma P Prisma Prisma G
Product certifications	CSA
Fixing mode	by screws clipped
Height	external: 336 mm
Width	external: 316 mm
Depth	external : 18 mm
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

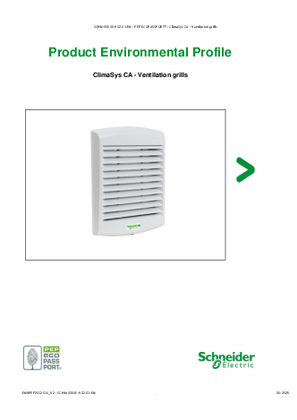

Environmental disclosure	ENVPEP2012014EN
Eu rohs directive	Compliant

Material

Device composition	1 support frame 1 external part 1 G2 M1 synthetic standard filter
Material	injected thermoplastic (ASA PC)

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	6
Package 3 bare product quantity	144
Average percentage of recycled plastic content	0 %
	At least in Europe
Weee label	No
Product name	ClimaSys CA
Accessory / separate part category	thermal management accessory
Accessory / separate part destination	ClimaSys ventilation system
Cut-out dimensions	291 x 291 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	32.500 cm
Package 1 length	34.500 cm
Package 1 weight	827.000 g
Unit type of package 2	CAR
Number of units in package 2	6
Package 2 height	40.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	5.408 kg
Unit type of package 3	P12
Number of units in package 3	144
Package 3 height	131.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	145.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	4.664024277819225
Carbon footprint of the manufacturing phase [a1 to a3]	5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.6389597914821934
Carbon footprint of the distribution phase [a4]	2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.2438824838566755
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.515691867879682
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	8.062558421037776
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=NSYCAG291LPF_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop directive	No POPs
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
