ClimaSys Outlet grille plast cut out 125x125mm ext dim 137x117mm IP54

Home ProductsIndustrialClimaSysOutlet grille

ClimaSys Outlet grille plast cut out 125x125mm ext dim 137x117mm IP54

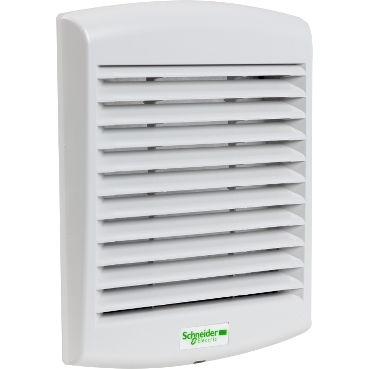

Item Number: NSYCAG125LPF

Outlet grille 125 x 125mm made from injected thermoplastic (ASA PC) for ClimaSys CV fan The kit is made of 1 support frame, 1 external part and 1 G2 M1 synthetic standard filter The external width is 150mm Ingress protection rating (according to IEC 60529) is IP54 Fixing by clips or by screws Cut-out dimensions is 125 x 125mm Painted in external part: grey (RAL 7035)

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Widthexternal: 150 mm

Height icon

Heightexternal: 170 mm

Depth icon

Depthexternal : 15 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

outlet grille

Colour

external part: grey (RAL 7035)

Warranty

18 months

Physical

Range compatibility

ClimaSys ClimaSys CV fan

Product certifications

CSA

Fixing mode

  • clipped
  • by screws

Height

external: 170 mm

Width

external: 150 mm

Depth

external : 15 mm

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2012014EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Device composition

  • 1 support frame
  • 1 external part
  • 1 G2 M1 synthetic standard filter

Material

injected thermoplastic (ASA PC)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

56

Package 3 bare product quantity

448

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Product name

ClimaSys CA

Accessory / separate part category

thermal management accessory

Accessory / separate part destination

ClimaSys ventilation system

Cut-out dimensions

125 x 125 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.500 cm

Package 1 width

15.500 cm

Package 1 length

18.000 cm

Package 1 weight

220.000 g

Unit type of package 2

CAR

Number of units in package 2

56

Package 2 height

38.500 cm

Package 2 width

40.000 cm

Package 2 length

60.000 cm

Package 2 weight

13.000 kg

Unit type of package 3

P12

Number of units in package 3

448

Package 3 height

91.000 cm

Package 3 width

80.000 cm

Package 3 length

120.000 cm

Package 3 weight

119.000 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
