ClimaSys Double thermostat 250V, range of temperature 0…60°C - 1NO/NC - °C

Home ProductsIndustrialClimaSysDouble thermostat

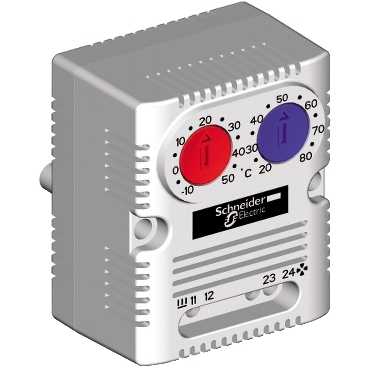

ClimaSys Double thermostat 250V, range of temperature 0…60°C - 1NO/NC - °C

Item Number: NSYCCOTHD

ClimaSys CC Double thermostat. 250V AC. 68 x 56 x 44 mm. Sensor Bimetal with 1 NO/NC contact type. 1 heating function and 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate PanelSet upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Widthexternal: 56 mm

Height icon

Heightexternal: 68 mm

Depth icon

Depthexternal : 44 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

double thermostat

Warranty

18 months

Physical

Sensor type

bimetal

Contact resistance

10 mOhm

Mounting mode

clipped

Height

external: 68 mm

Width

external: 56 mm

Depth

external : 44 mm

Net weight

40 g

Ambient air temperature for operation

-20...80 °C

Ip degree of protection

IP20

Product certifications

UL

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2103012EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

1500

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

ClimaSys CC

Temperature setting range

0...60 °C

Information displayed

temperature in °C

Input voltage

250 V

Contacts type and composition

1 NO/NC

Service life in cycles

100000 cycles

Maximum switching capacity

  • 2 A 120...250 V AC inductive pf: 0.6
  • 10 A 250 V AC resistive
  • 15 A 120 V AC resistive
  • 30 W DC

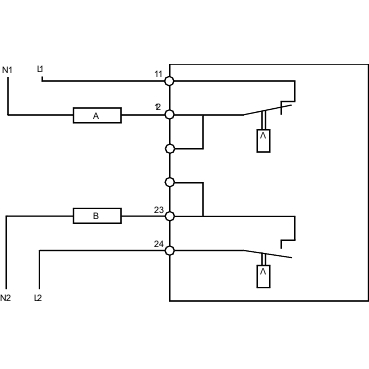

Electrical connection

4 terminals, clamping capacity: 2.5 mm²

Mounting location

  • Spacial upright
  • on mounting plate
  • 35 mm DIN rail
  • cross rails

Hysteresis

7 K +/- 0.4K

Number of outputs

  • 1 heating function
  • 1 ventilation function

Flame retardance

self-extinguishing conforming to UL94 (material V0)

Compatibility code

THERMOSTAT

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.000 cm

Package 1 width

7.000 cm

Package 1 length

8.000 cm

Package 1 weight

104.000 g

Unit type of package 2

P12

Number of units in package 2

1500

Package 2 height

119.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

200.000 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

3452f1a3-f13d-4adf-84ba-2572bcc8e35c

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
CAD drawing - Customized ClimaSys NSYCCOTHD(F)
ZIP

CAD drawing - Customized ClimaSys NSYCCOTHD(F)

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 270 KB
ClimaSys CC - Double Thermostat(NO NC) (ºC) - 3D CAD
ZIP

ClimaSys CC - Double Thermostat(NO NC) (ºC) - 3D CAD

VERSION

1.0

DATE

23 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 12.3 MB
Catalogue PrismaSeT P Active
ZIP

Catalogue PrismaSeT P Active

VERSION

6.0

DATE

08 Oct 2025

REVISION

6.0

DOWNLOAD (ZIP) 181.1 MB
Catalog PrismaSeT G Active
ZIP

Catalog PrismaSeT G Active

VERSION

5.1

DATE

07 Oct 2025

REVISION

5.1

DOWNLOAD (ZIP) 205.7 MB
Catalog PrismaSeT P
ZIP

Catalog PrismaSeT P

VERSION

8.0

DATE

06 May 2025

REVISION

8.0

DOWNLOAD (ZIP) 182.2 MB
Catalogue PrismaSeT G
ZIP

Catalogue PrismaSeT G

VERSION

7.0

DATE

18 Apr 2025

REVISION

7.0

DOWNLOAD (ZIP) 179.3 MB
Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide
ZIP

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.8 MB

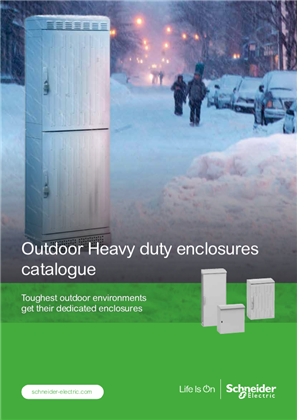

Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures
ZIP

Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures

VERSION

2.1

DATE

07 Mar 2023

REVISION

2.1

DOWNLOAD (ZIP) 4.4 MB

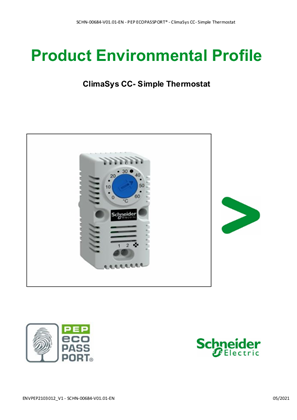

PEP-ClimaSys CC- Simple Thermostat
ZIP

PEP-ClimaSys CC- Simple Thermostat

VERSION

1.0

DATE

29 Jan 2024

REVISION

1.0

DOWNLOAD (ZIP) 354.9 KB

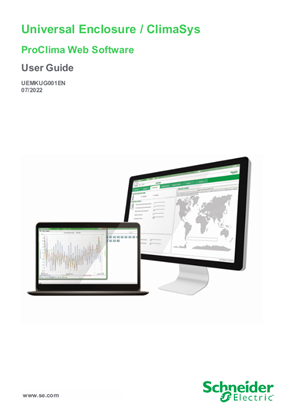

ProClima - Web Software User Guide (English)
ZIP

ProClima - Web Software User Guide (English)

VERSION

1.0

DATE

12 Jan 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.4 MB

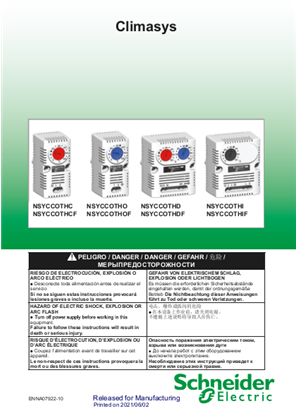

TECHNICAL INSTRUCTION ELECTROMECHANICAL THERMOSTAT - Instruction sheet
ZIP

TECHNICAL INSTRUCTION ELECTROMECHANICAL THERMOSTAT - Instruction sheet

VERSION

2.1

DATE

21 Dec 2022

REVISION

2.1

DOWNLOAD (ZIP) 5.6 MB

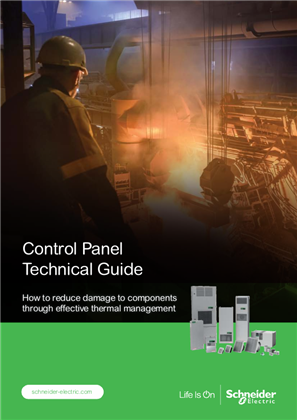

Control Panel - Technical Guide - How to reduce damage to components through effective thermal management
